Task 5: Combining subassemblies

Assembly time ≈ 30 minutes

---

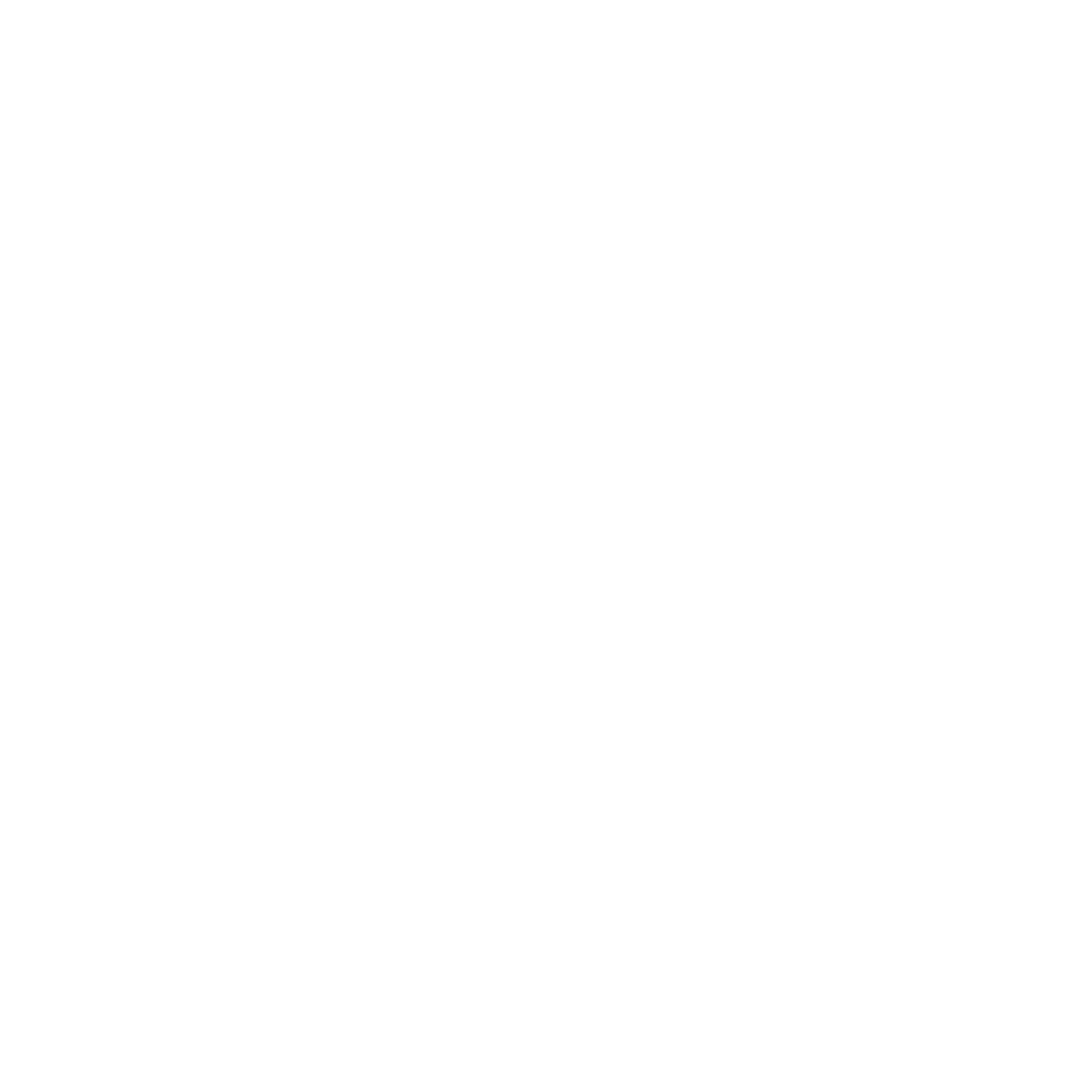

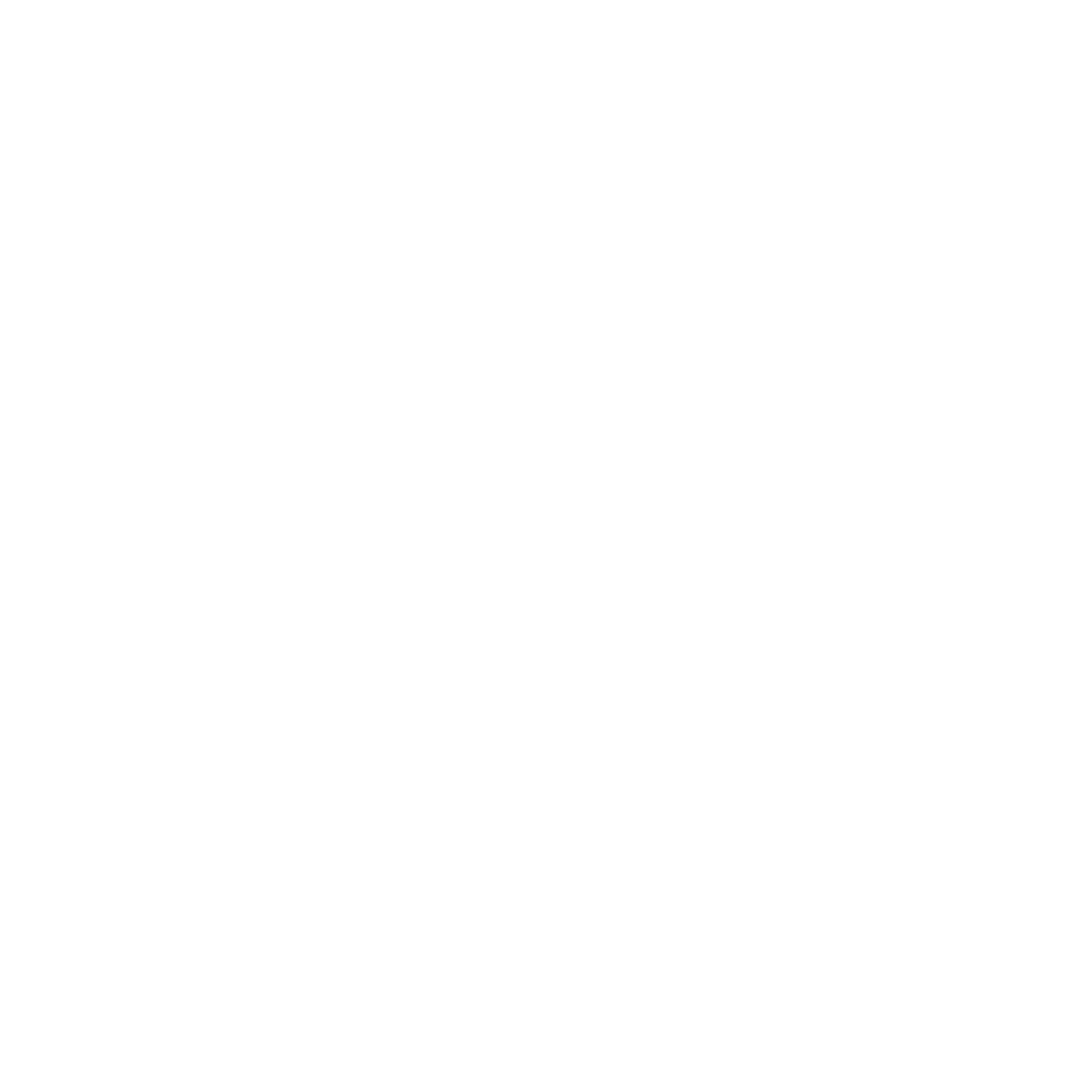

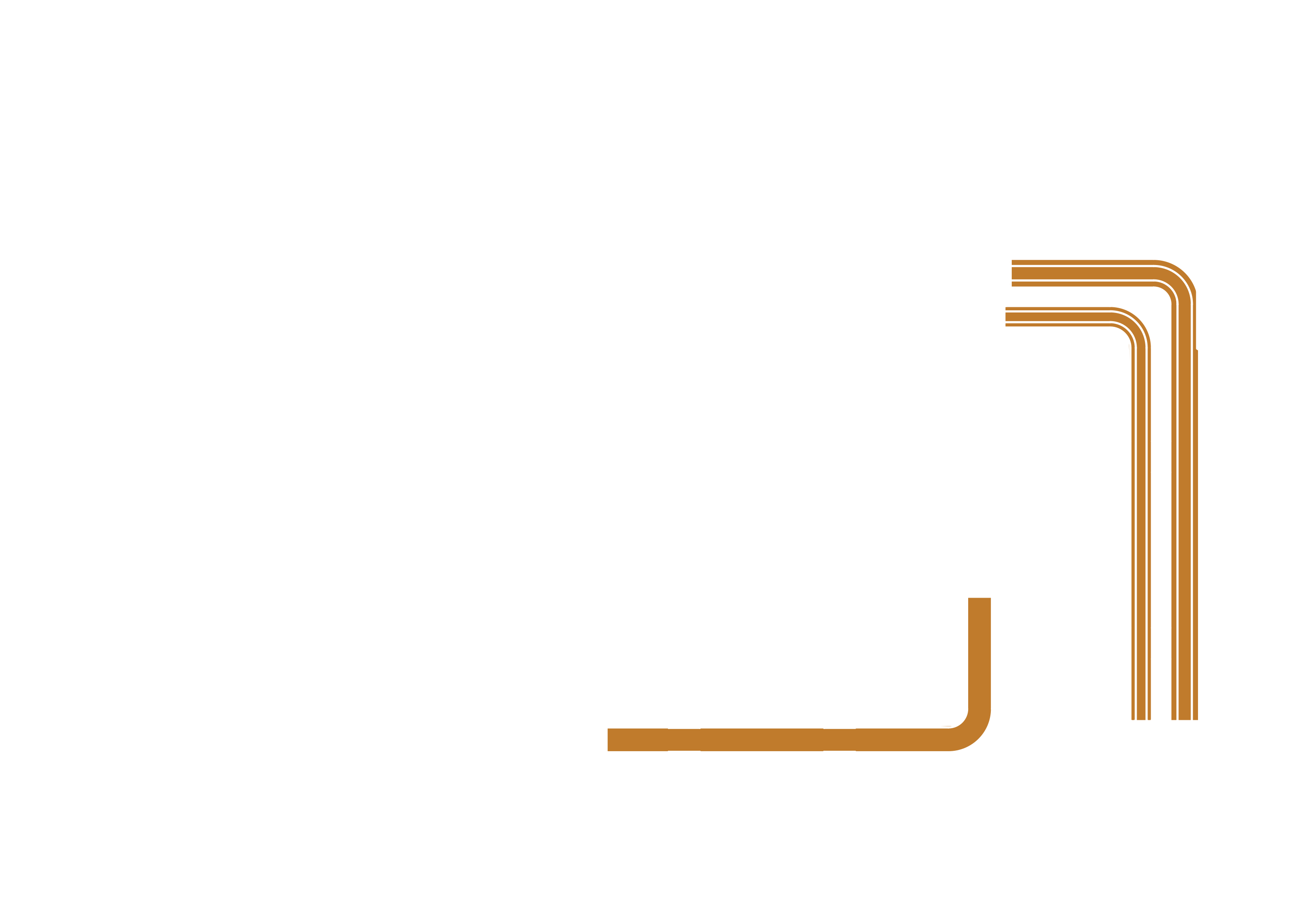

Step 1

note

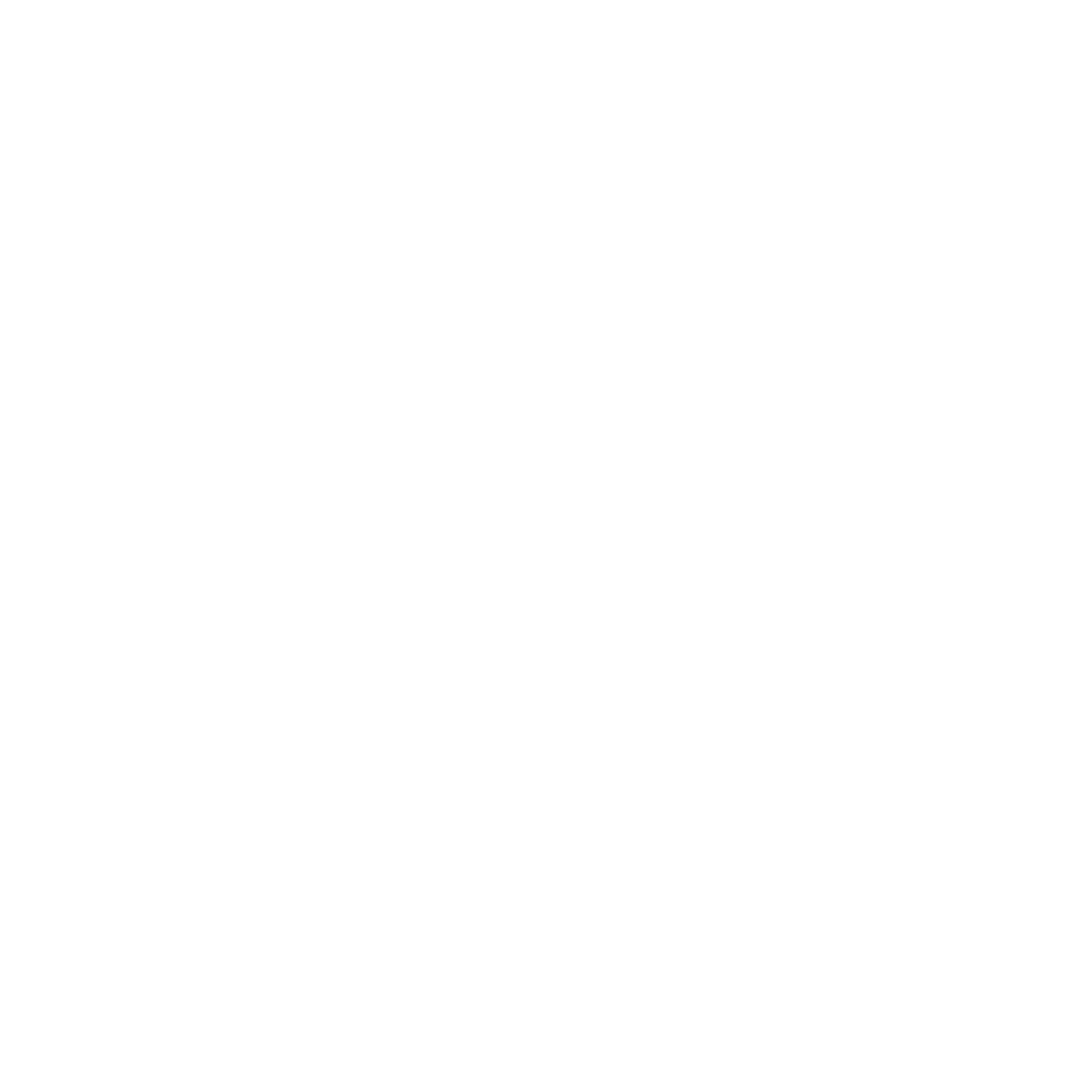

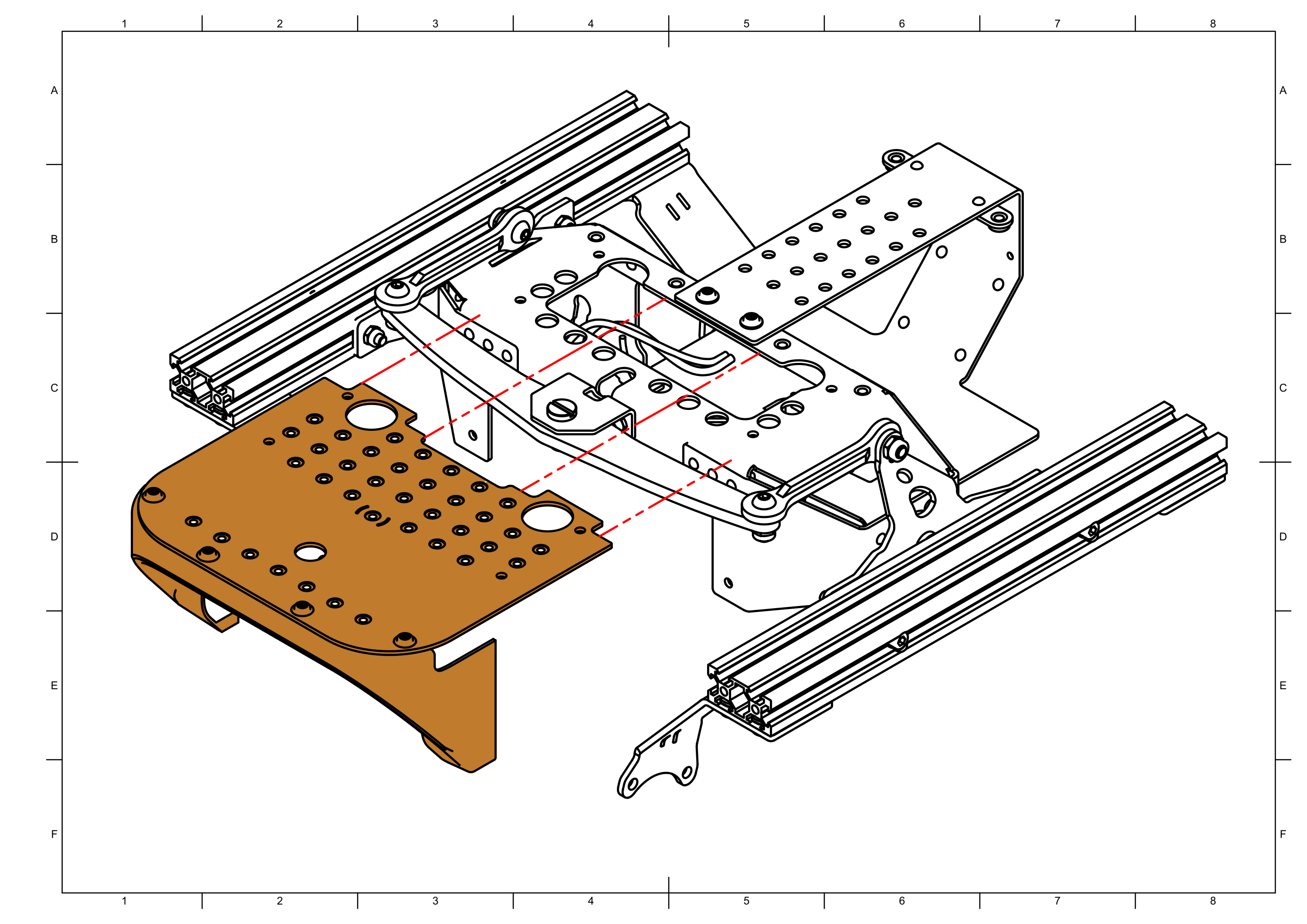

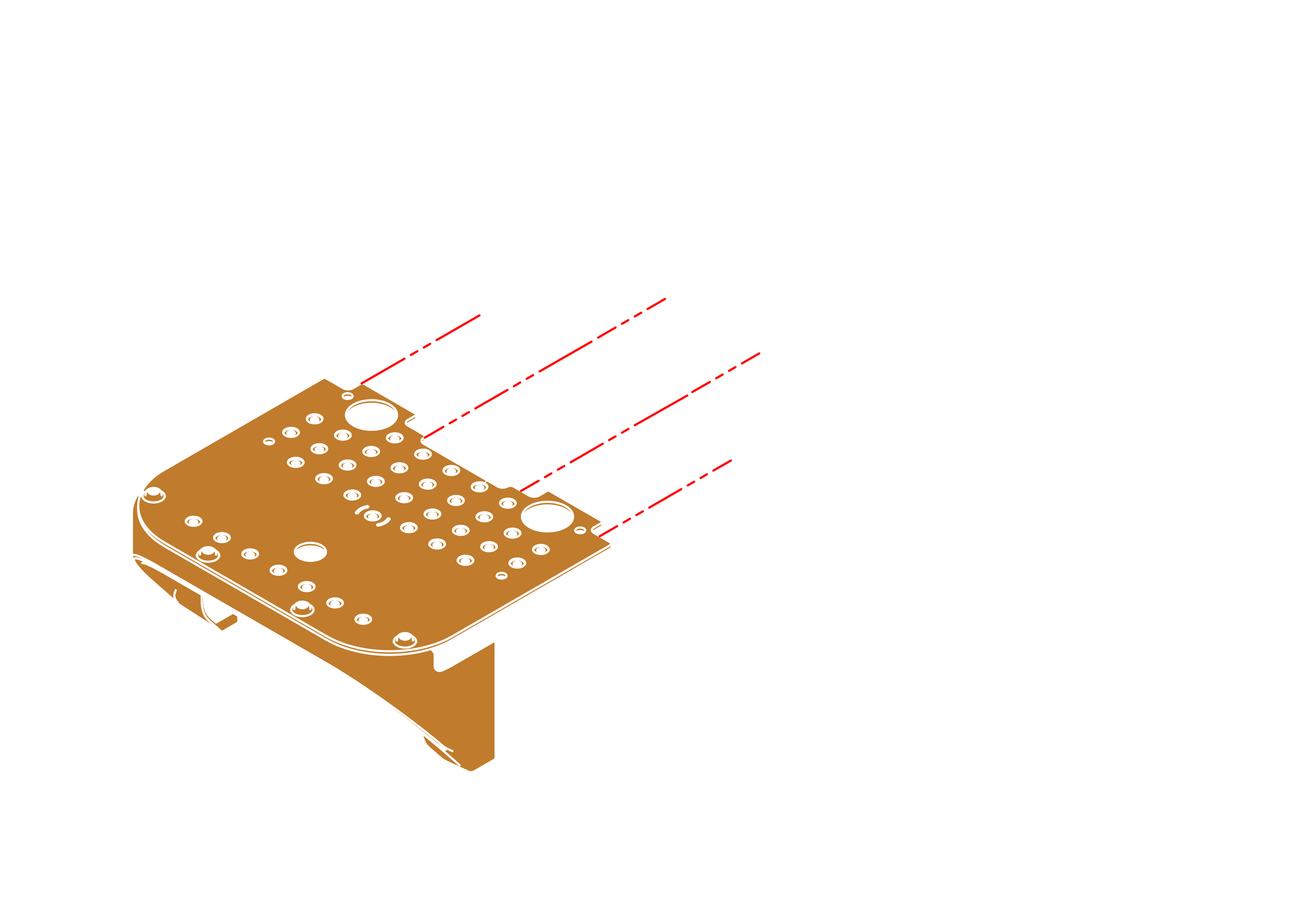

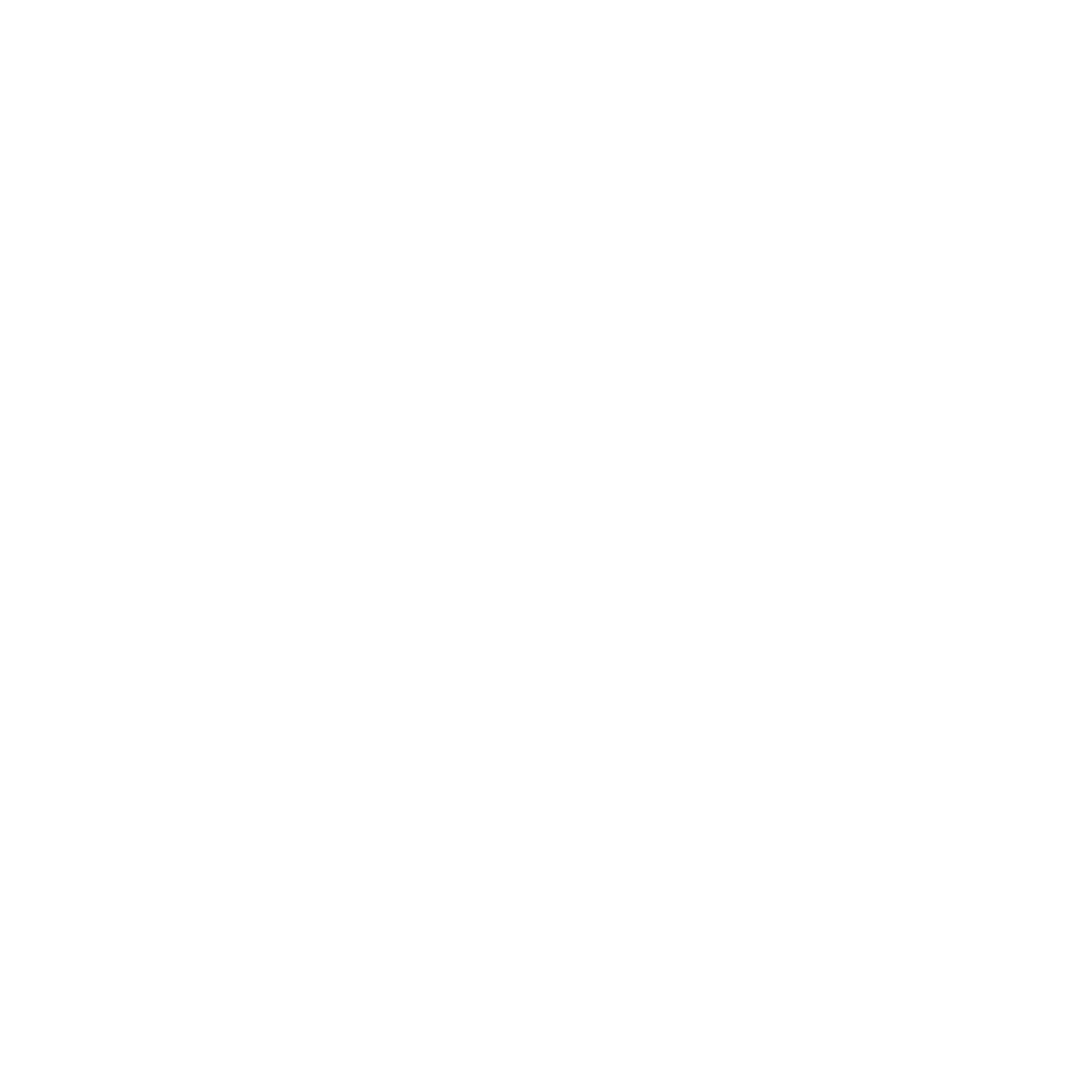

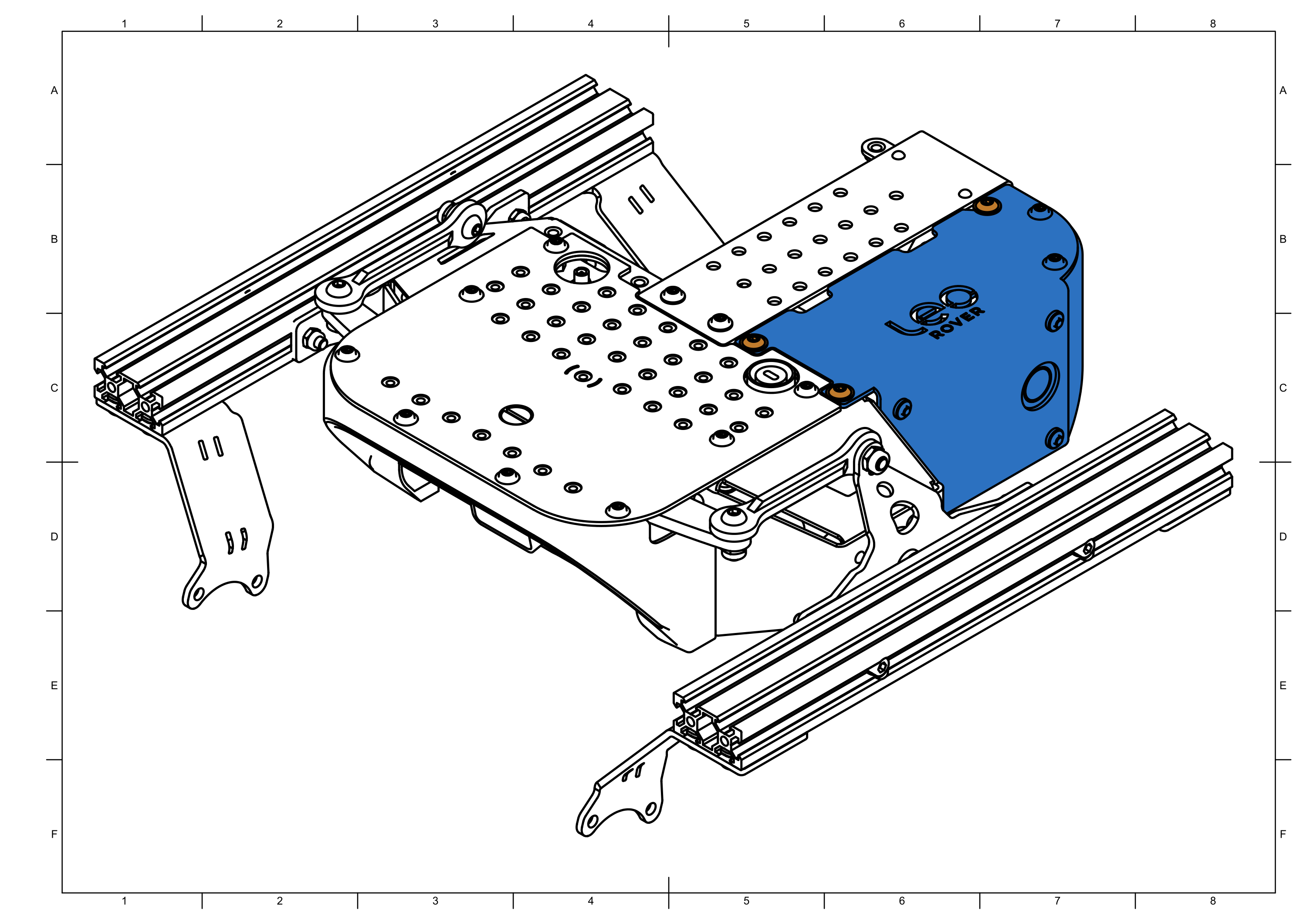

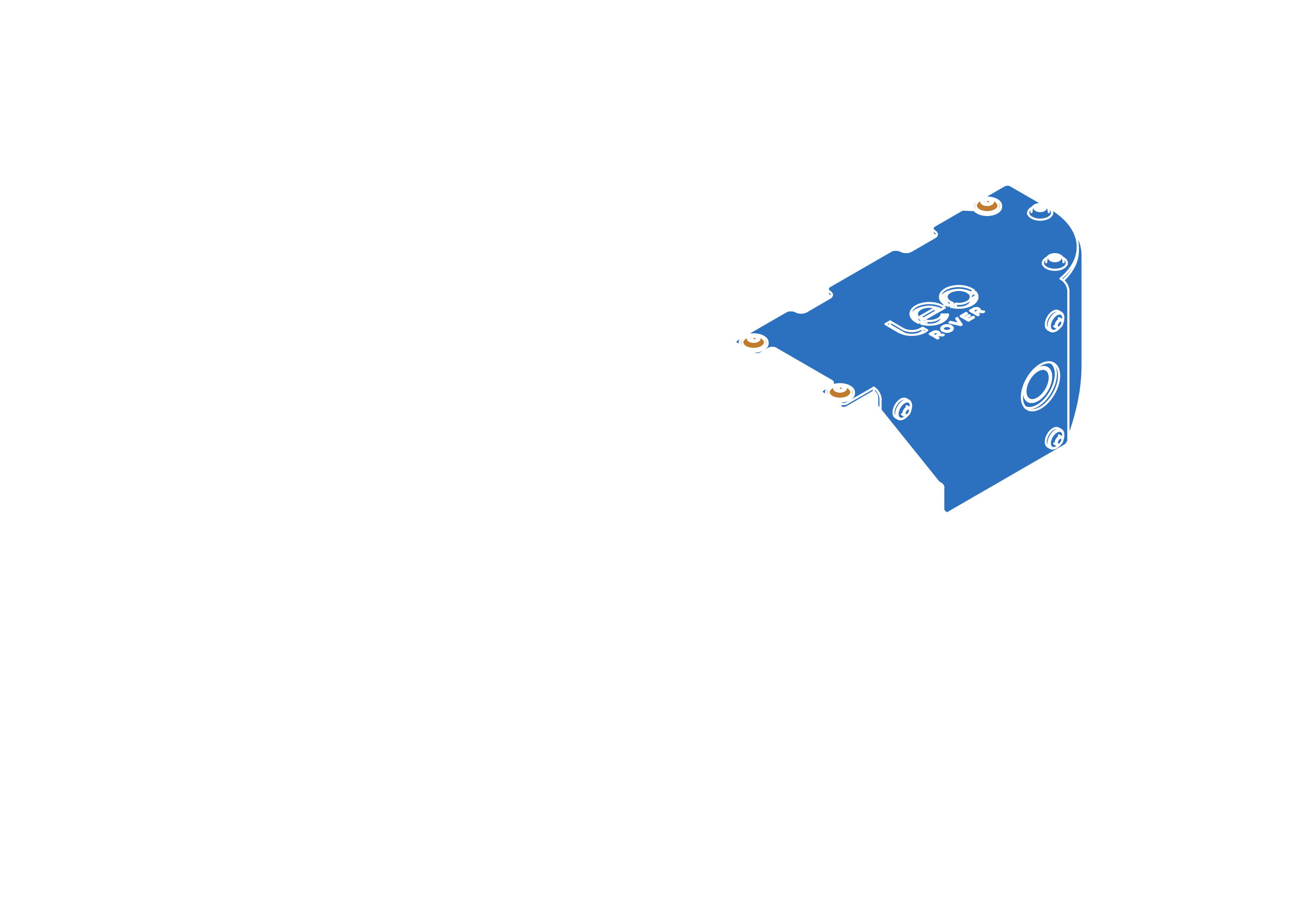

Slide the front cover over the differential bar.
You might need to loosen the screws first. Remember to re-tighten them later.

---

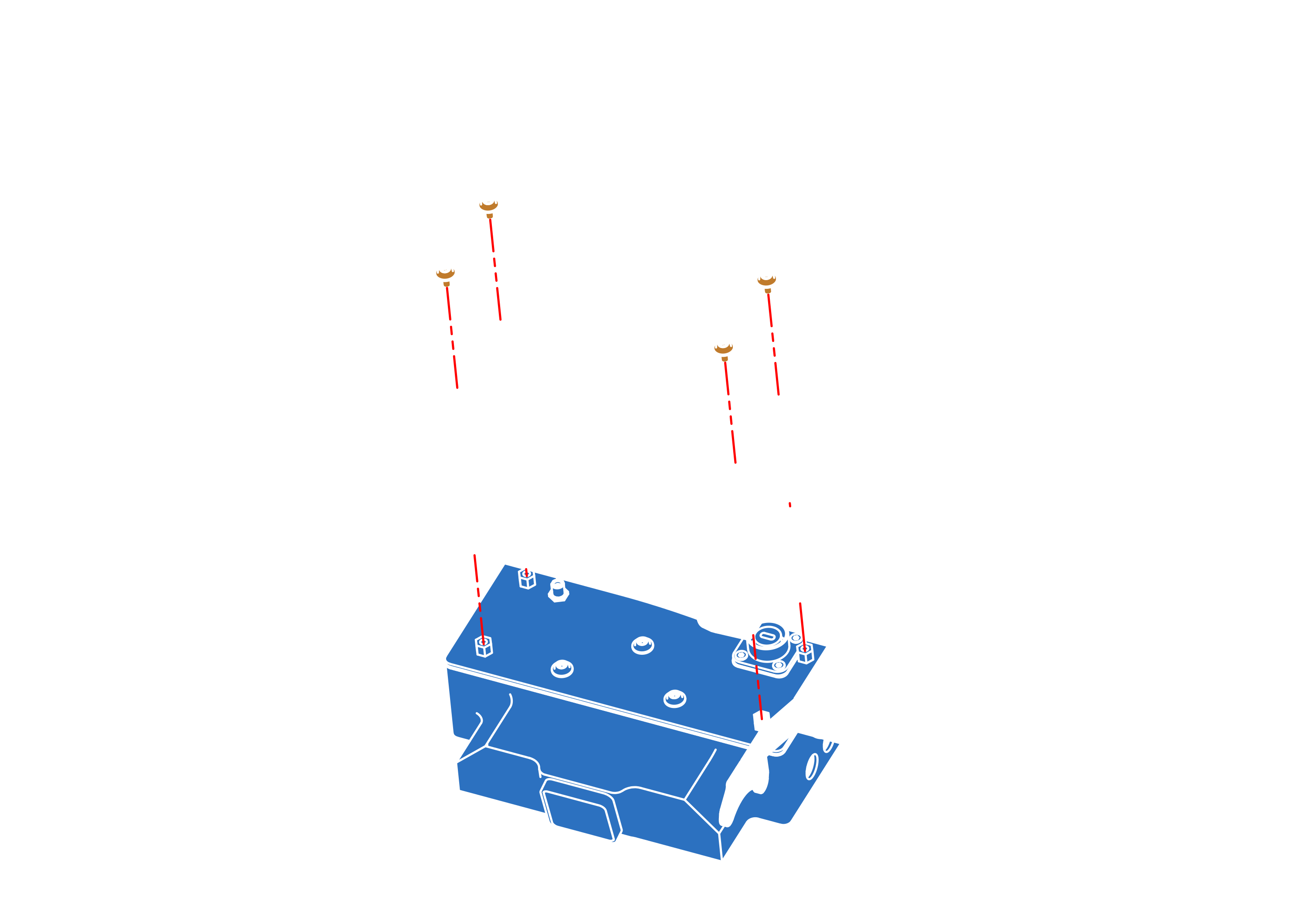

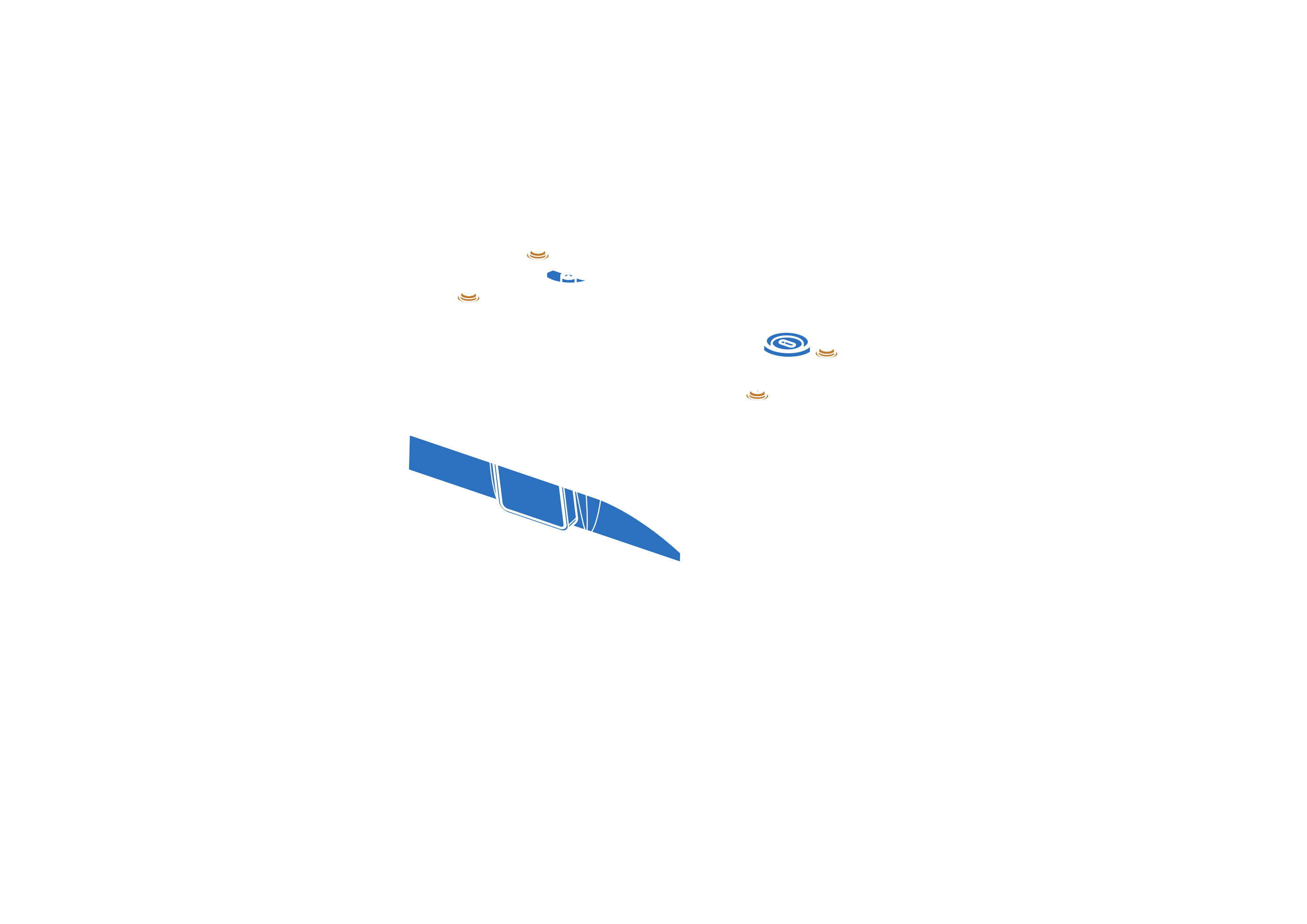

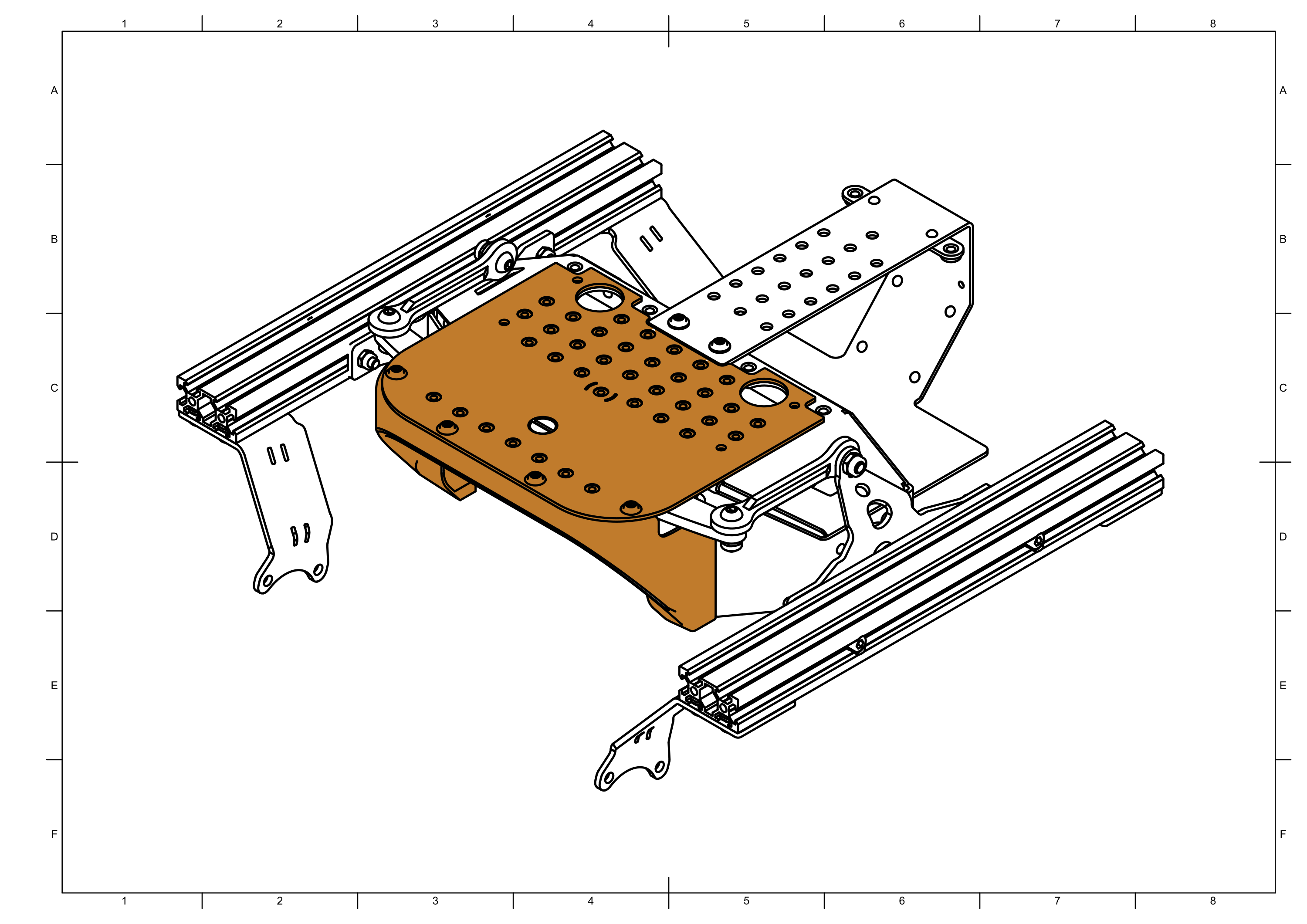

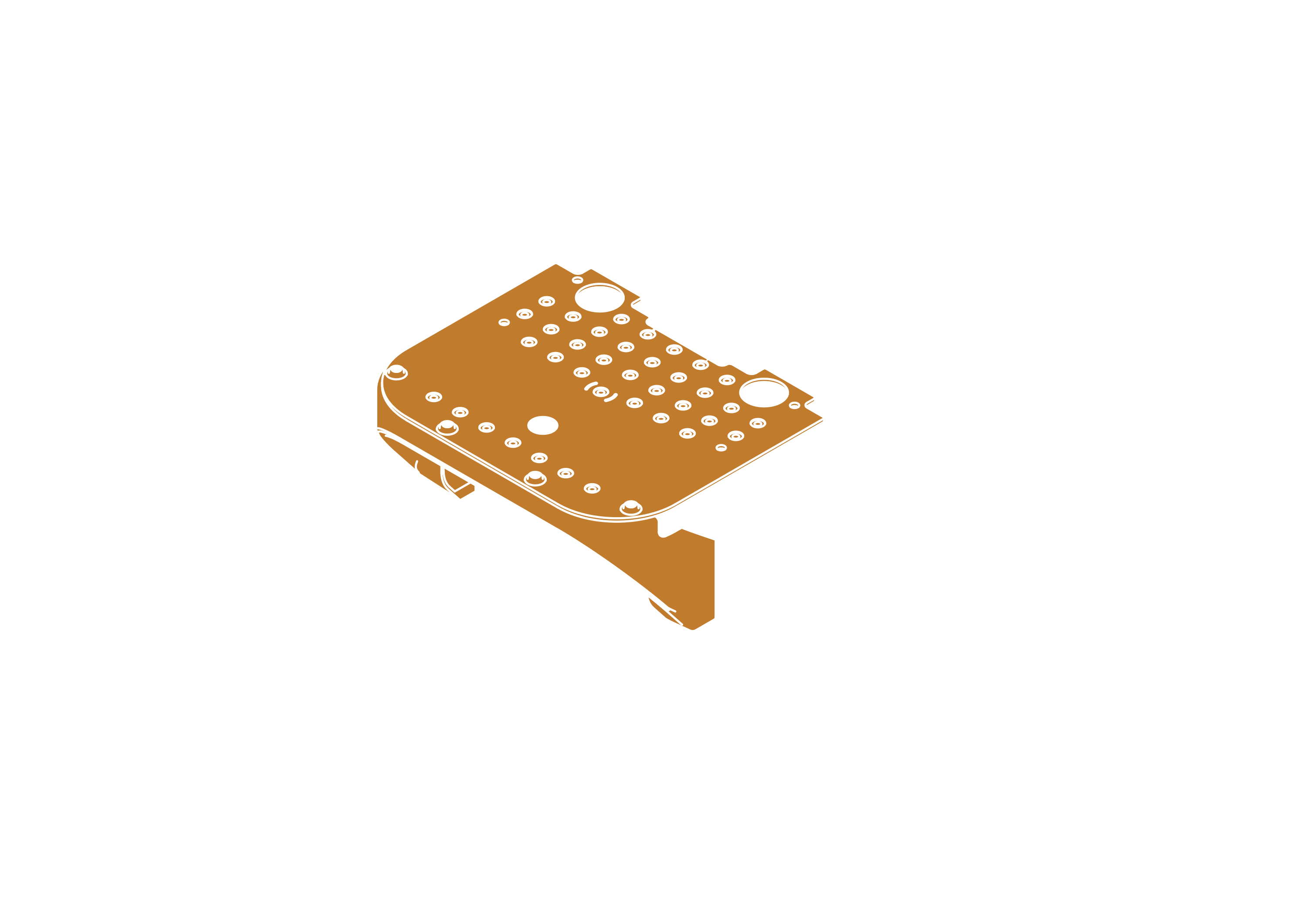

Step 2

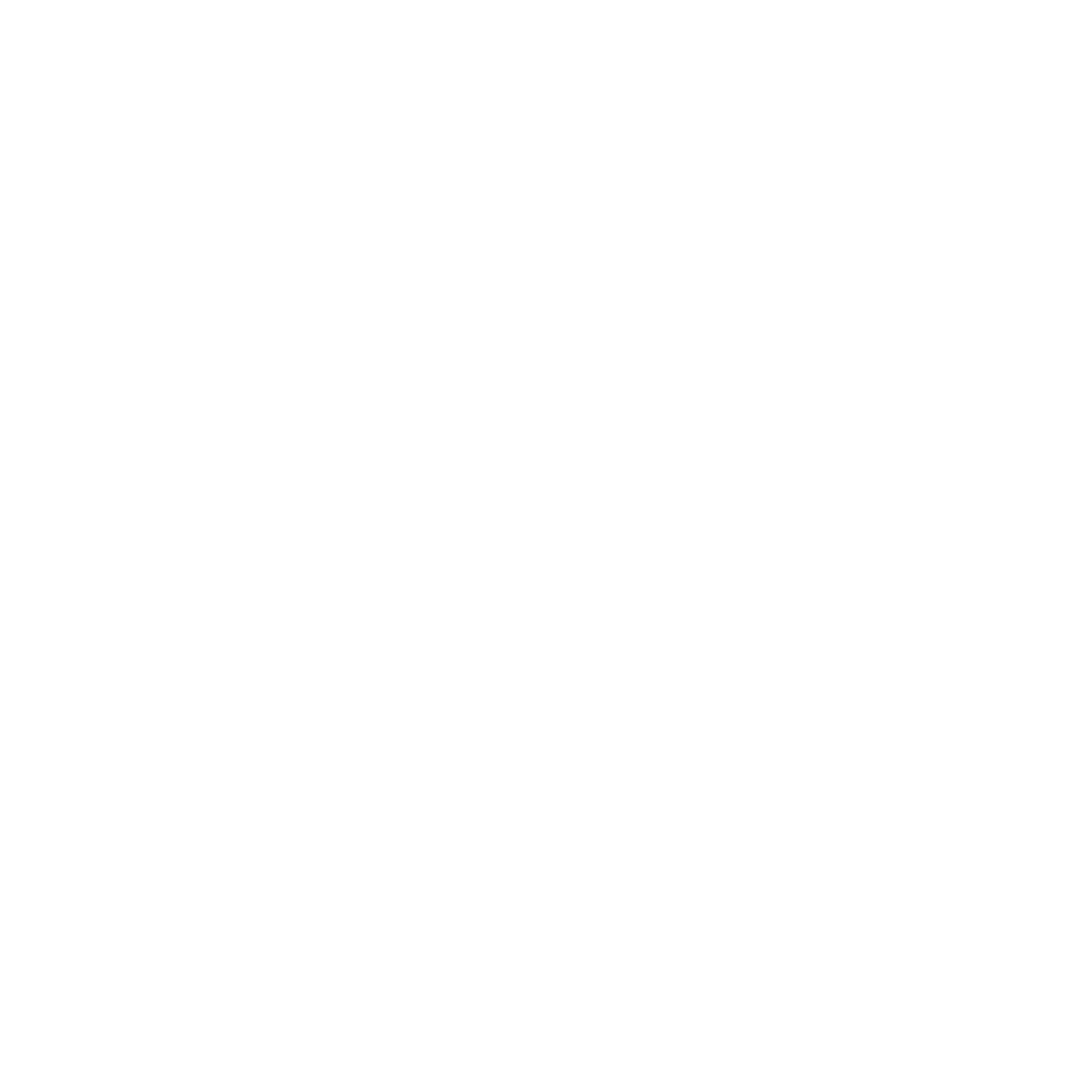

4x M4x8 FBHTS

4x M4x8 FBHTS

---

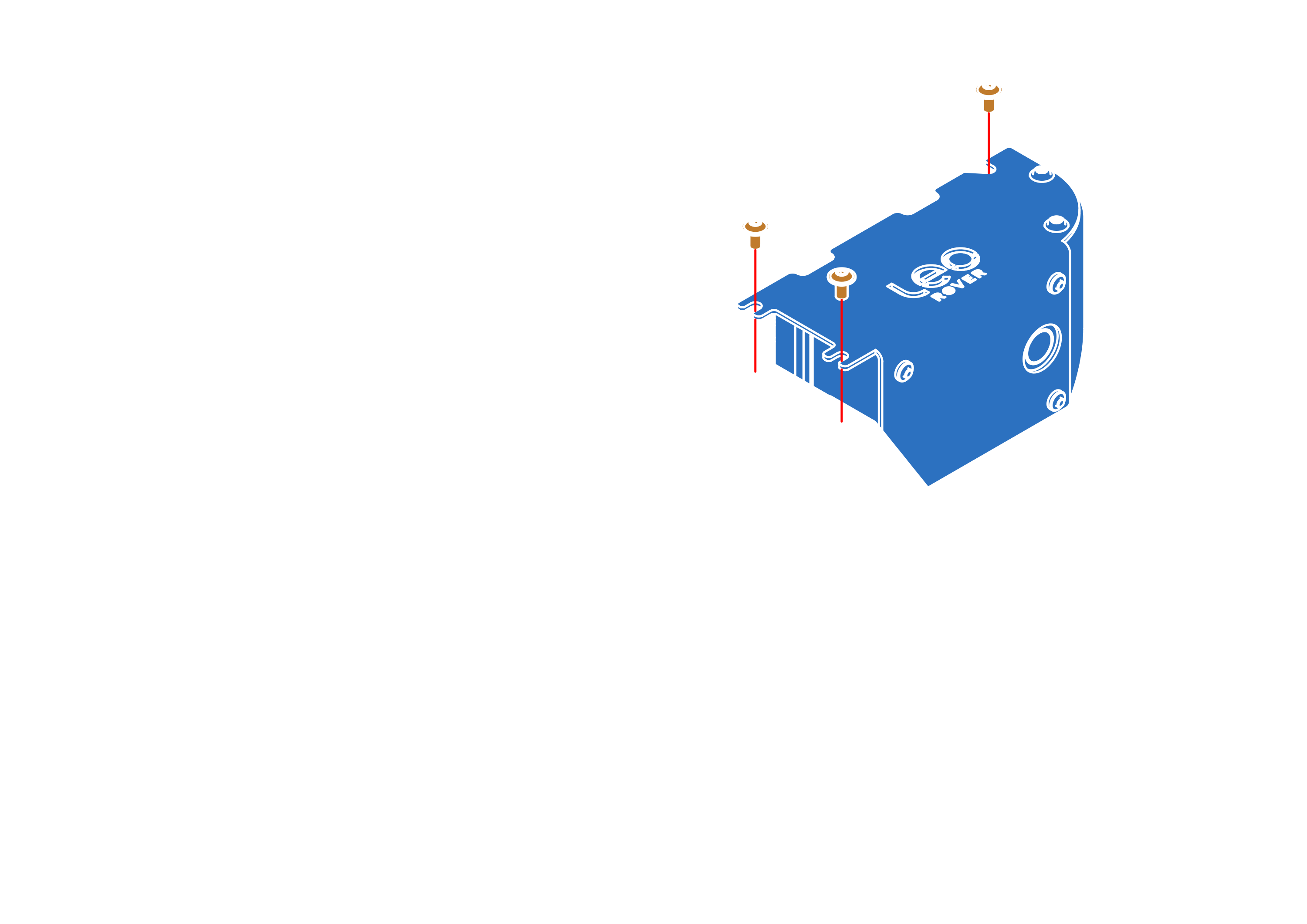

Step 3

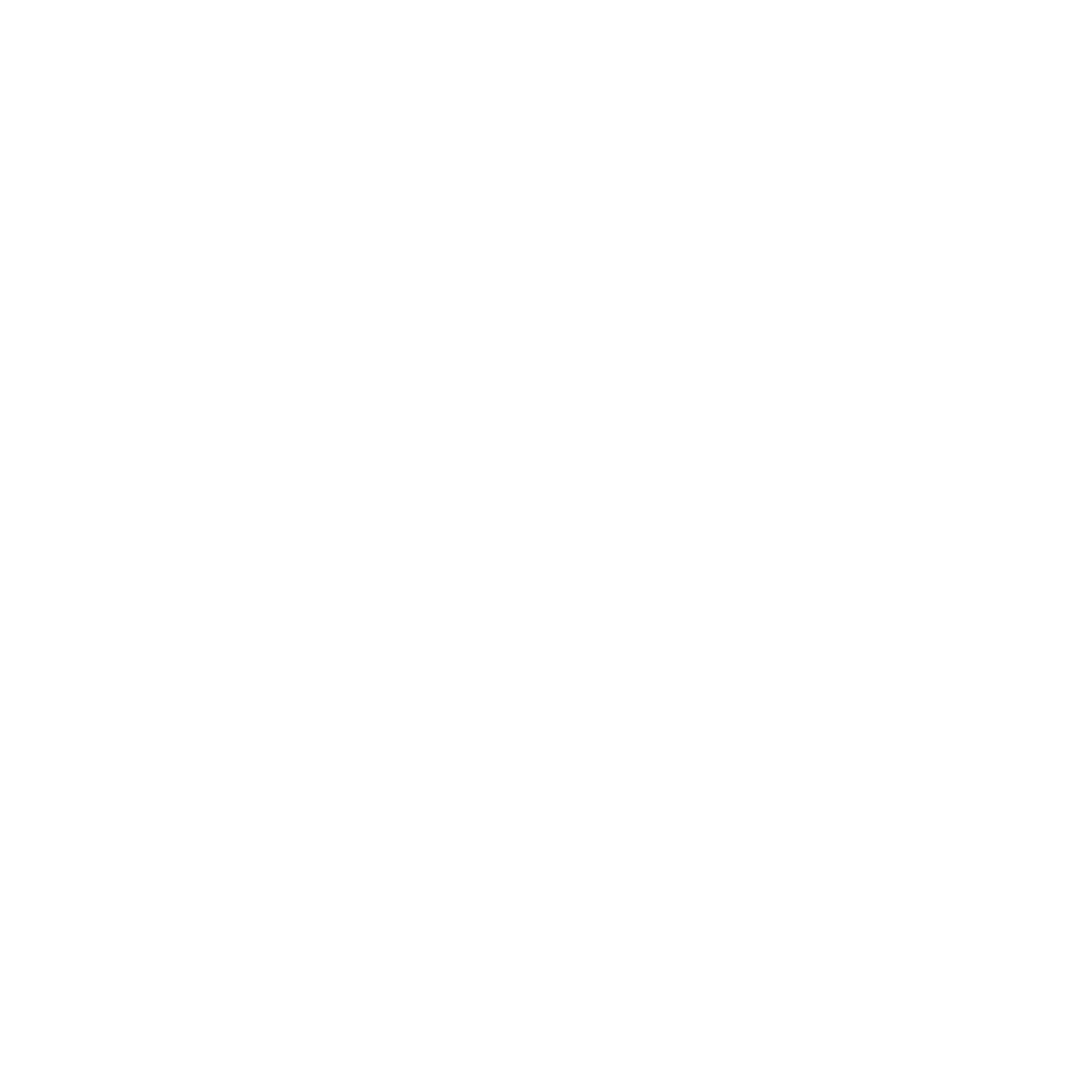

3x M5x10 FBHCS

3x M5x10 FBHCS

---

Step 4

---

Step 5

3x M5x10 FBHCS

3x M5x10 FBHCS

---

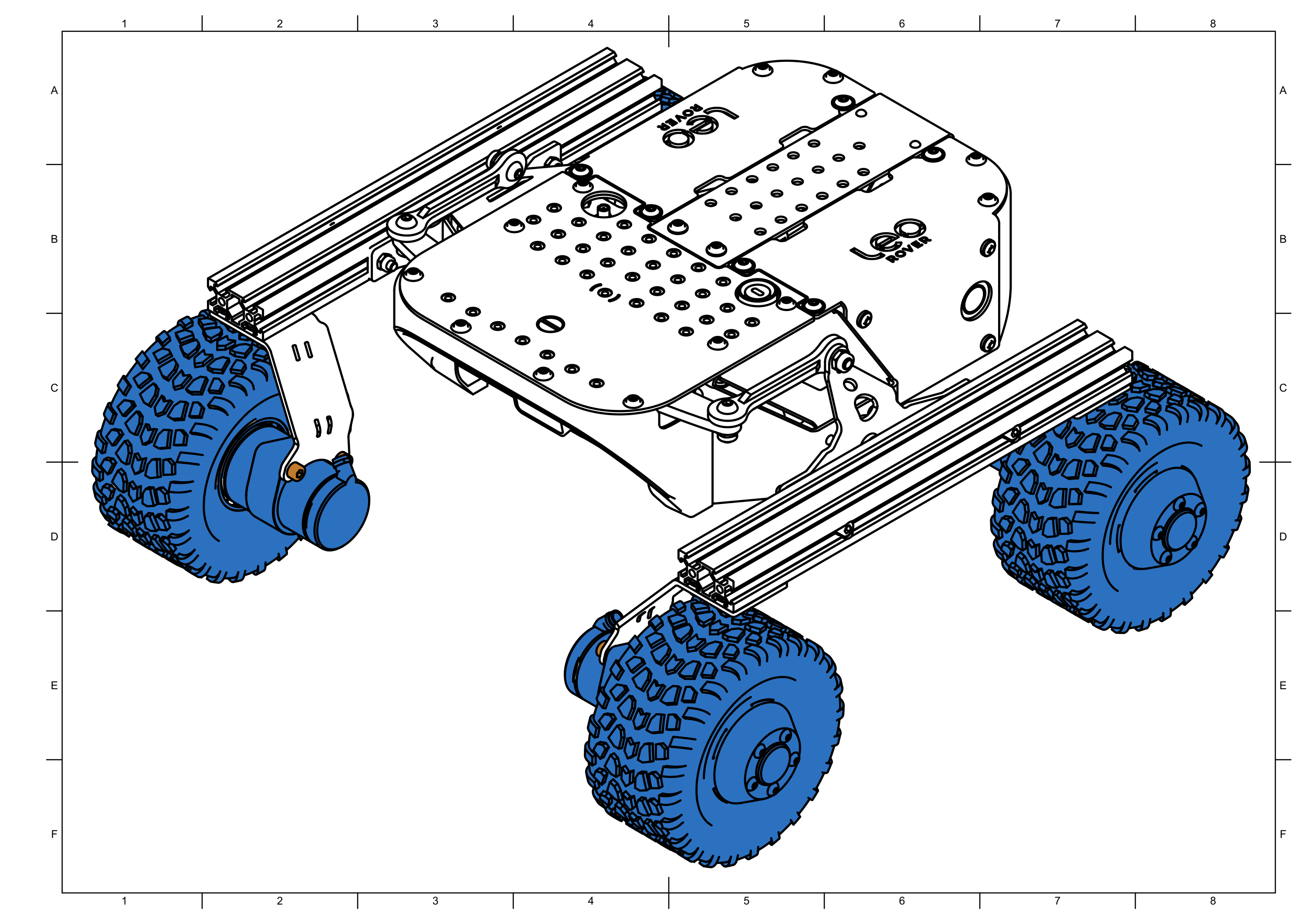

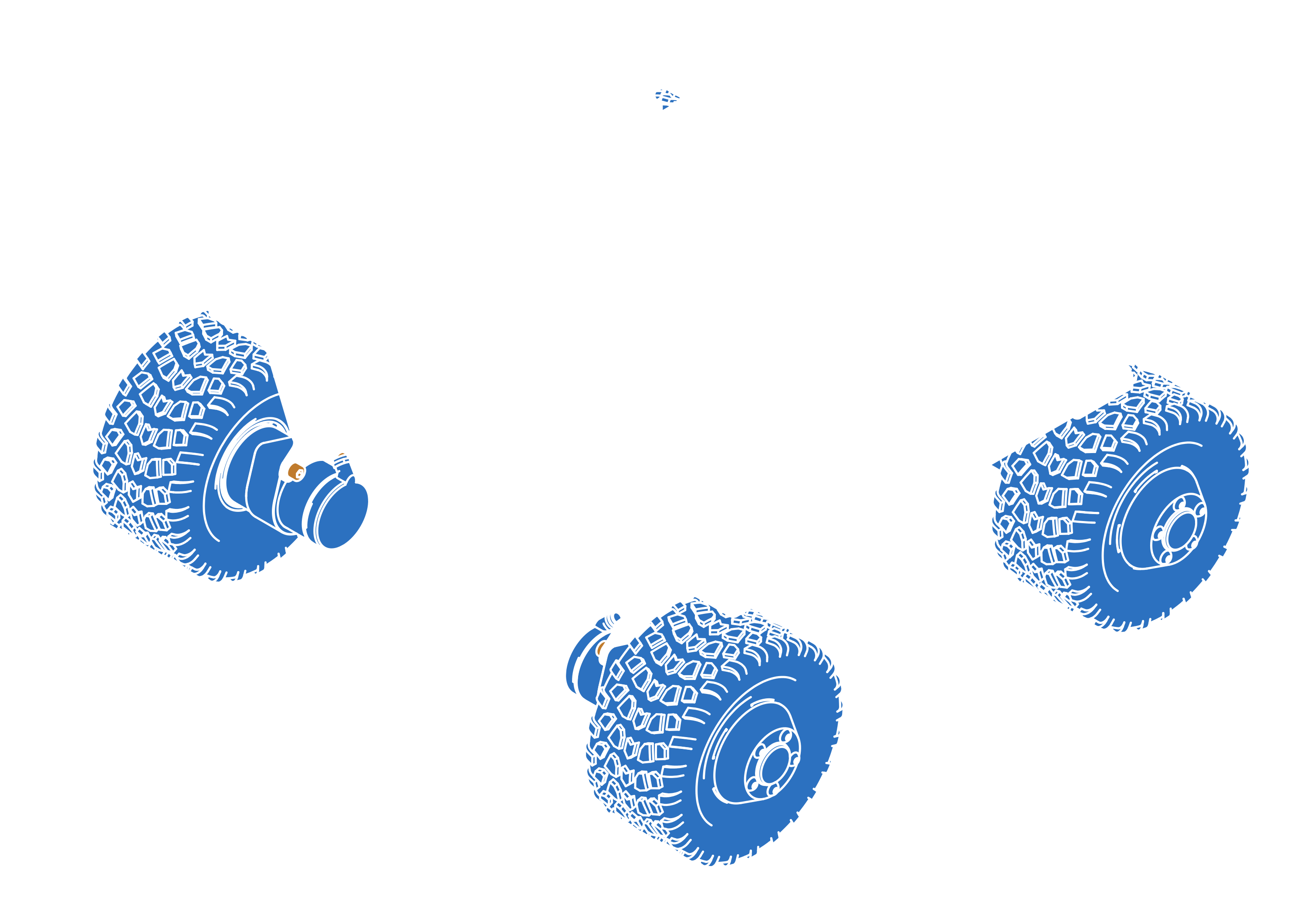

Step 6

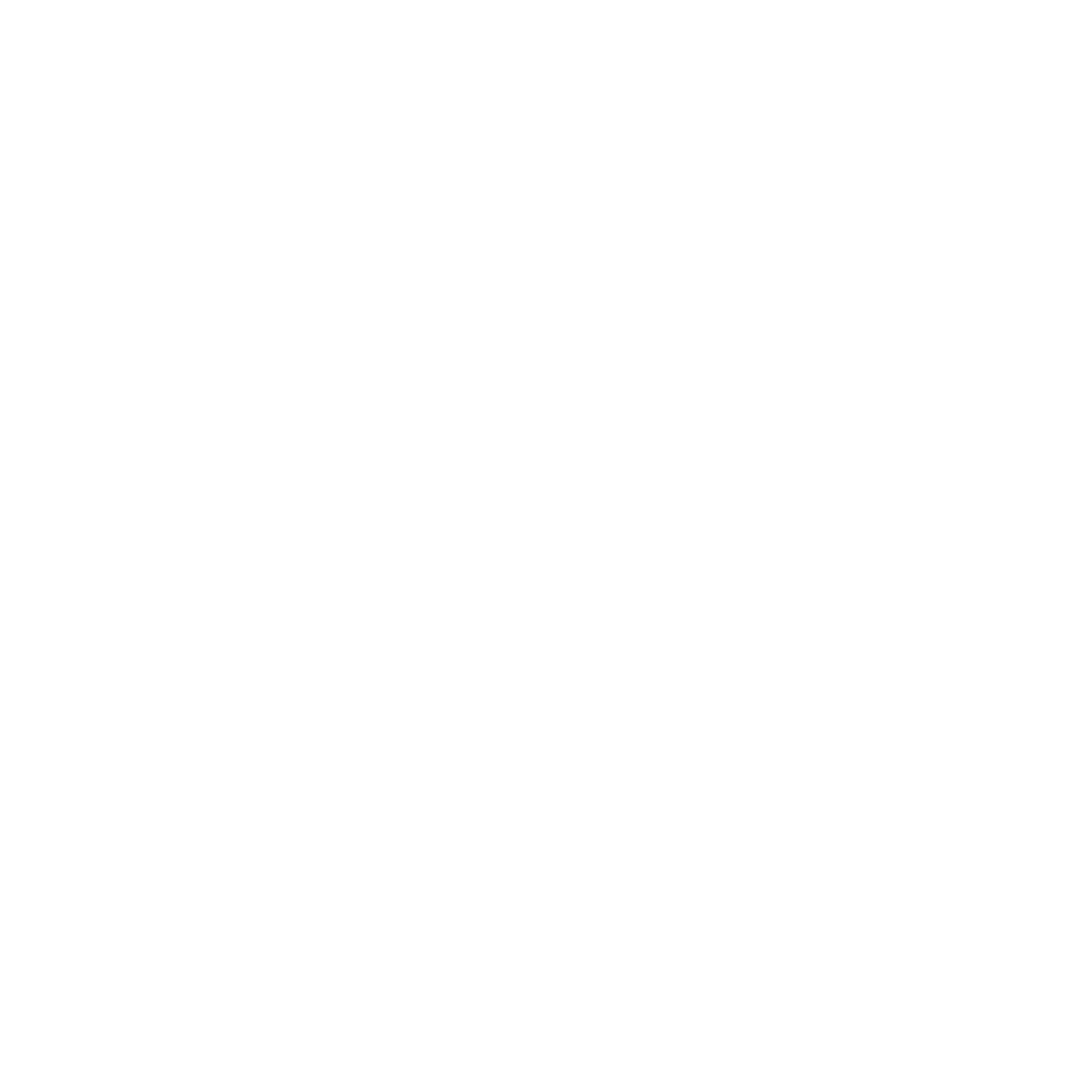

8x M5x10 SHCS

8x M5x10 SHCS

---

Step 7

note

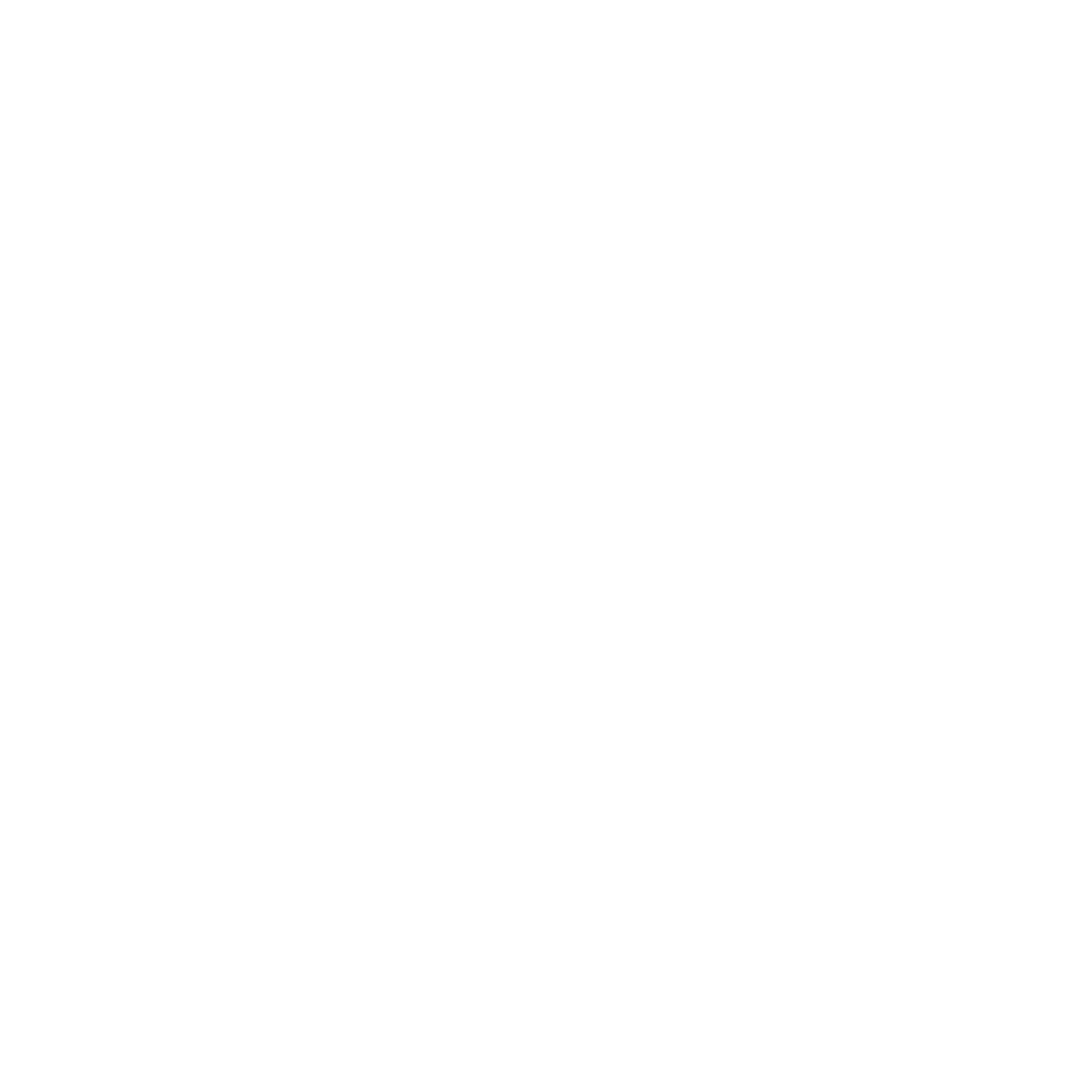

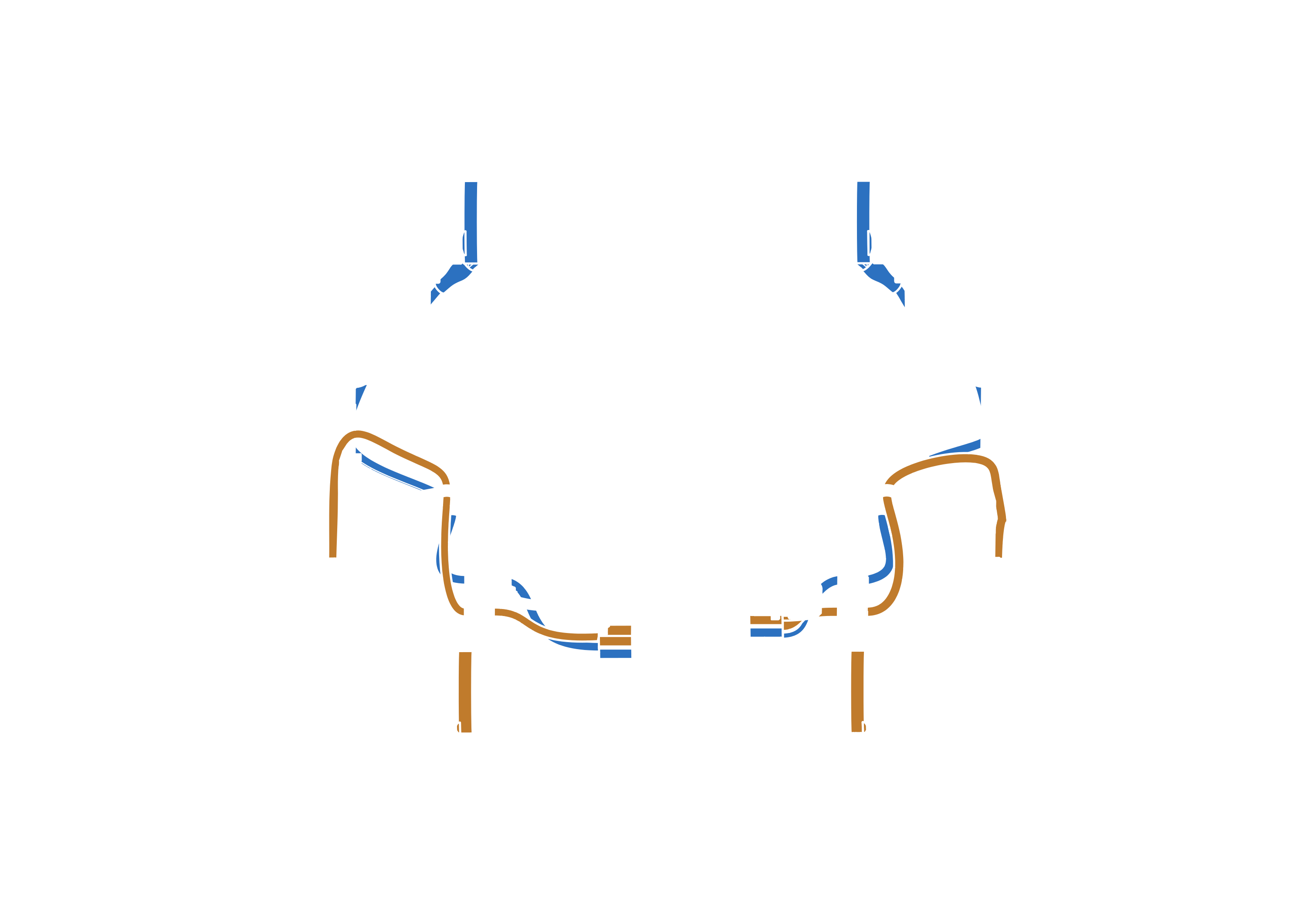

Run motor cables through the sides of the electronics box.
Push cable seals and grommets into the holes of the box.
Plug wheel connectors into the LeoCore controller board.
Make sure that front wheel plugs are connected to the upper sockets.

---

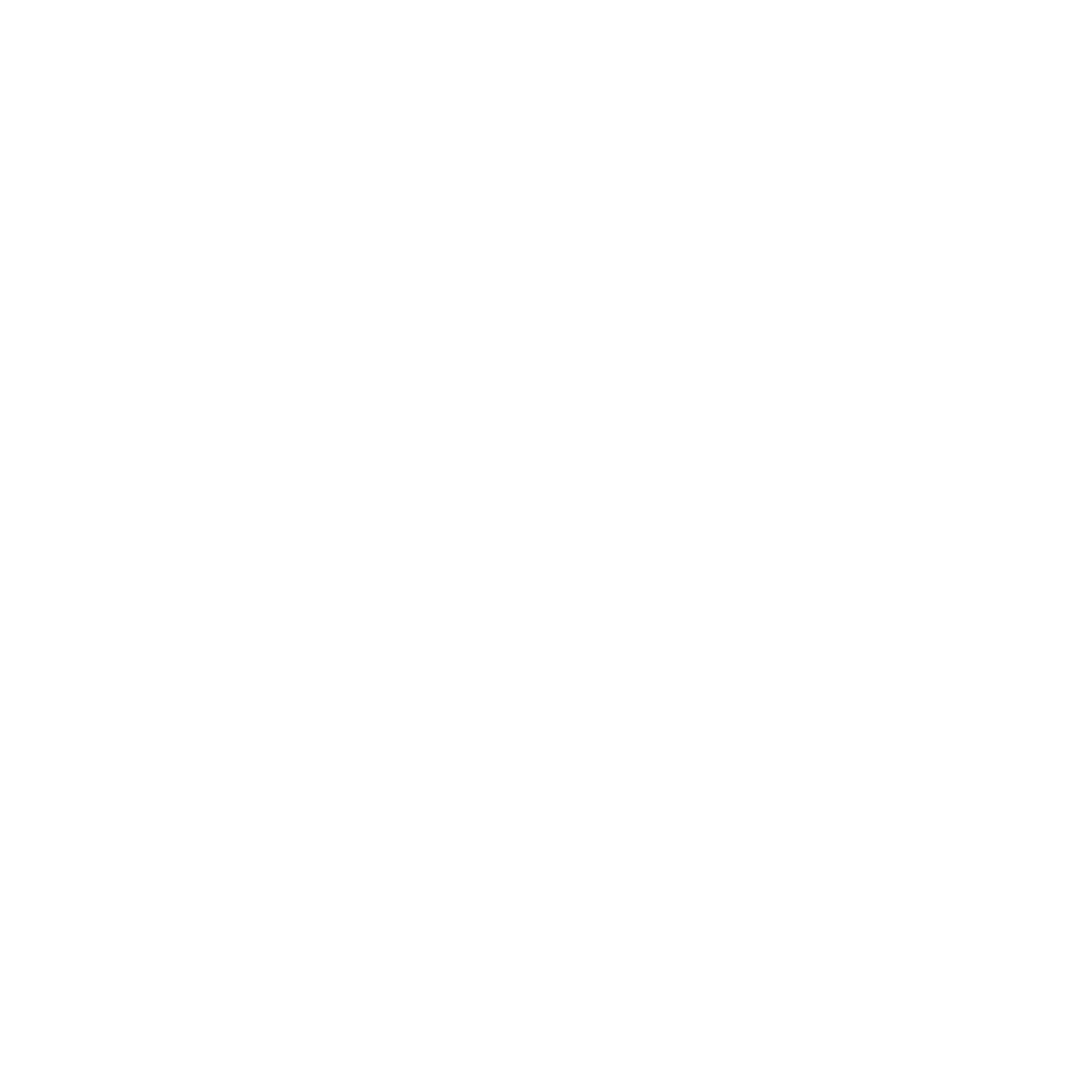

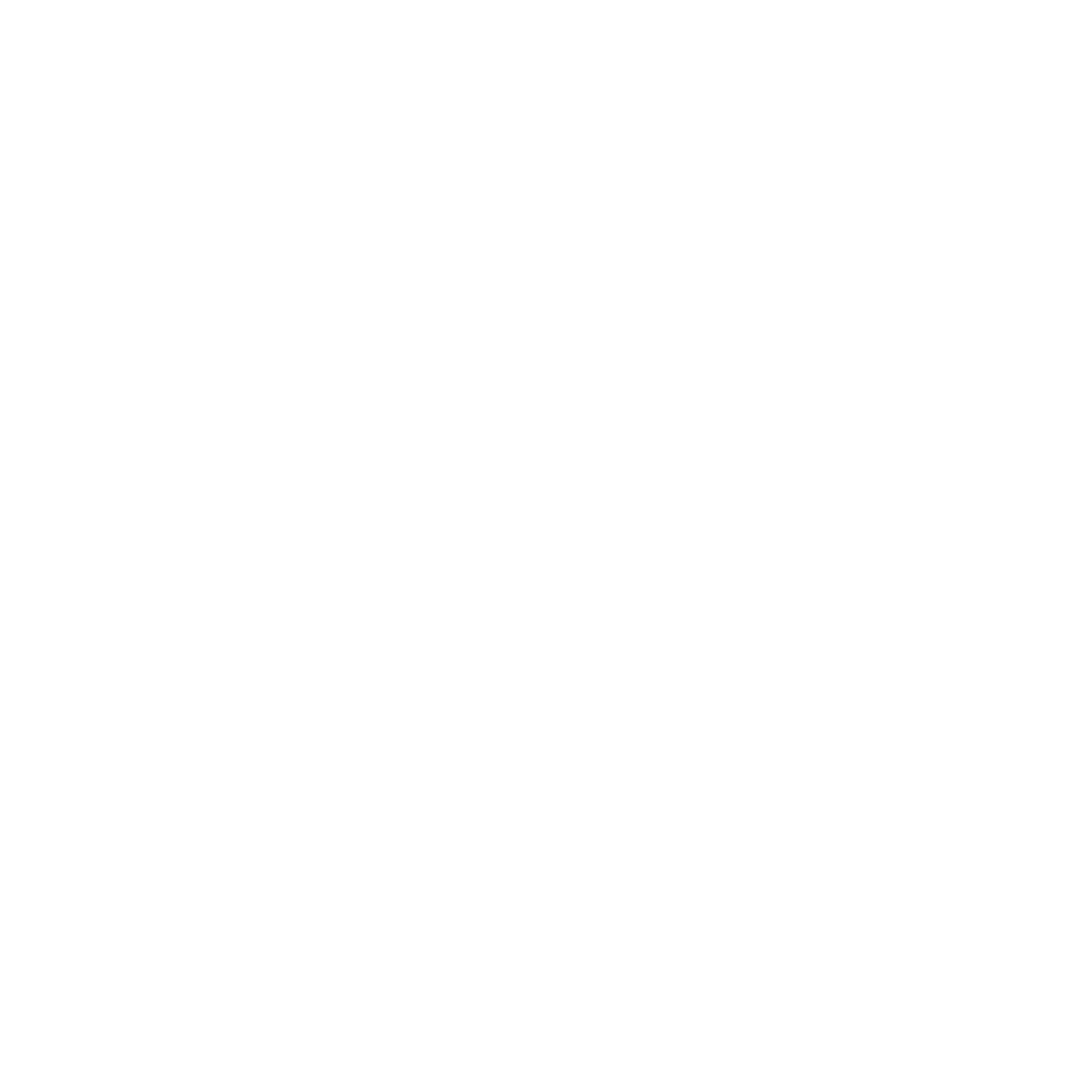

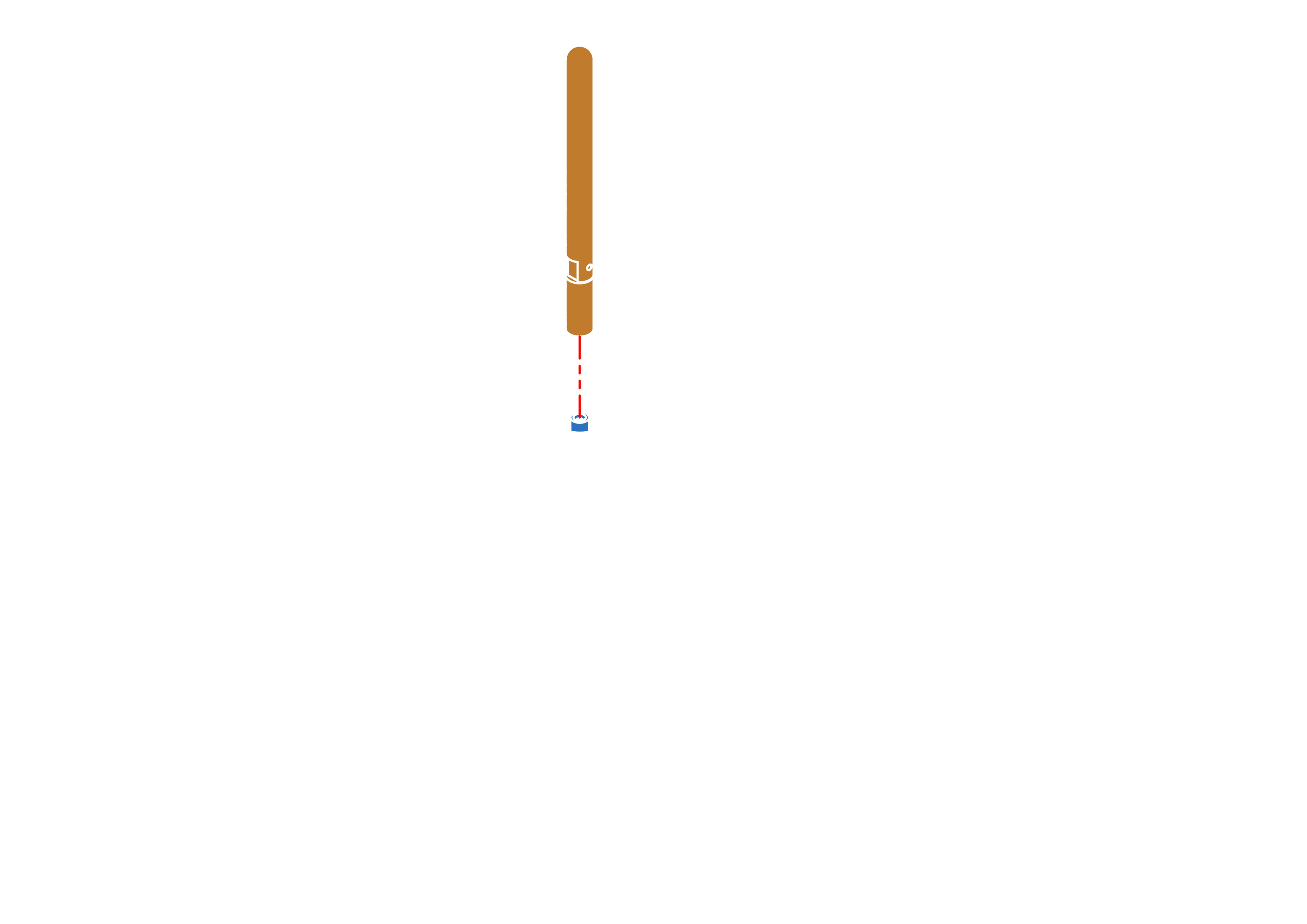

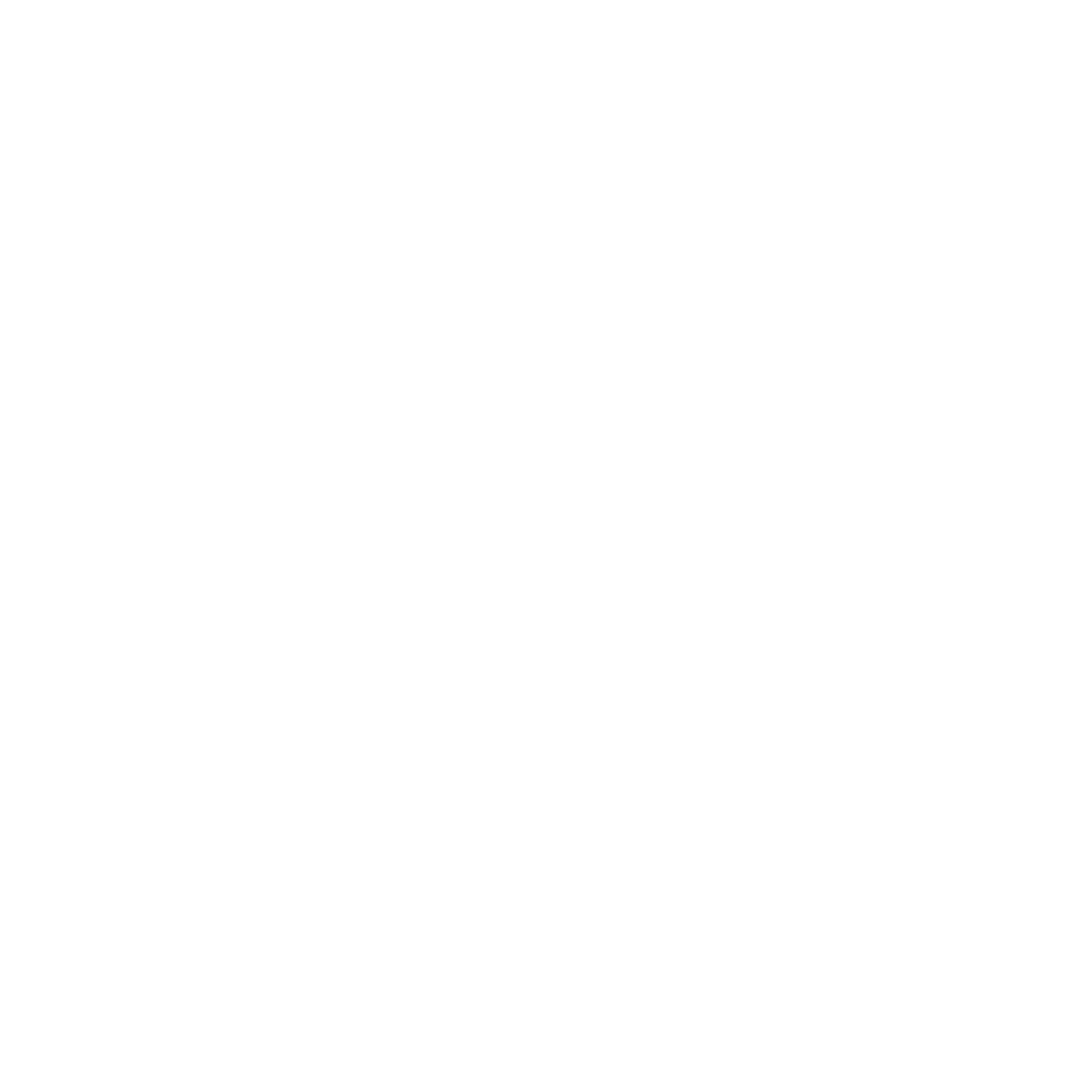

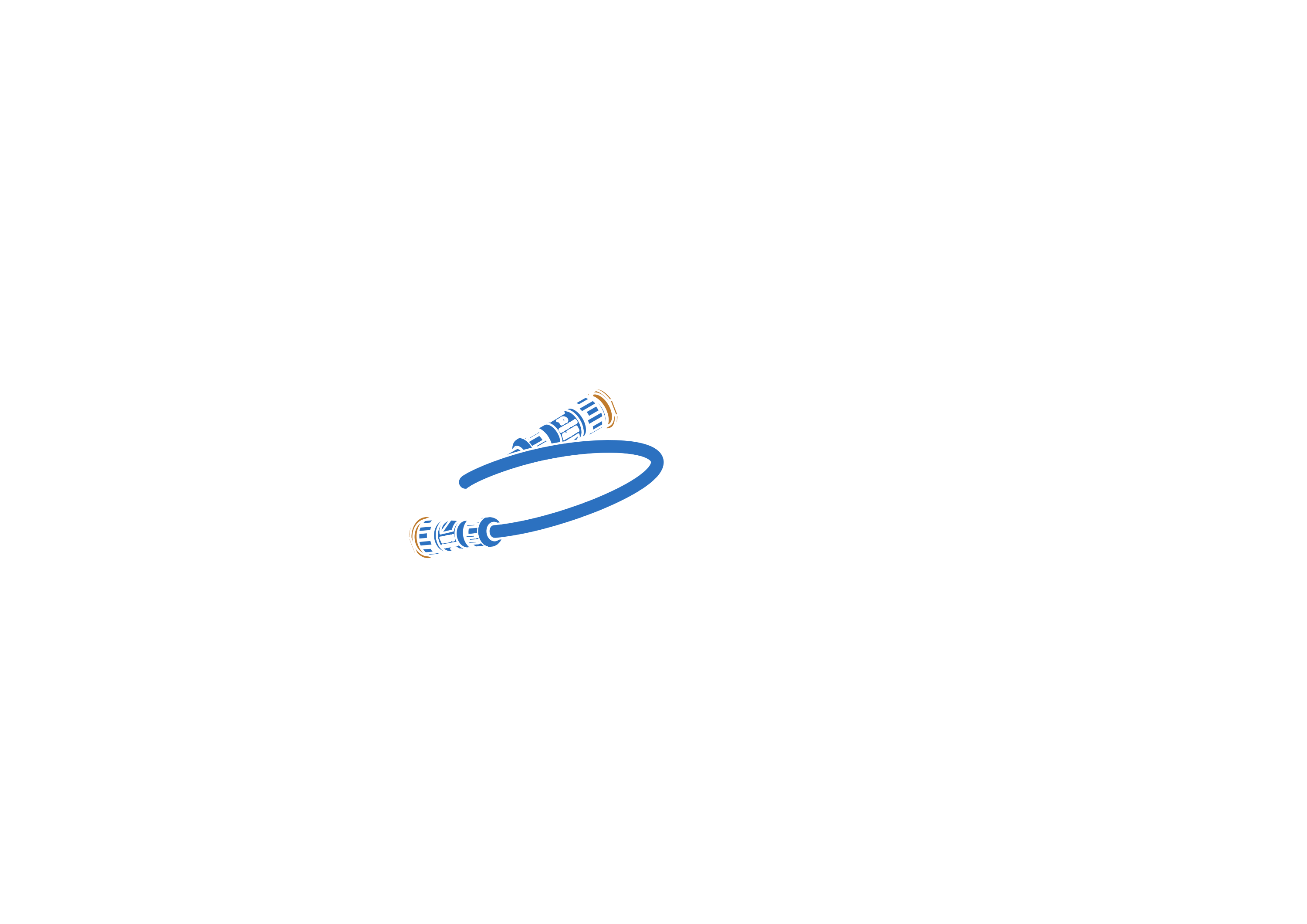

Step 8

Step 9

note

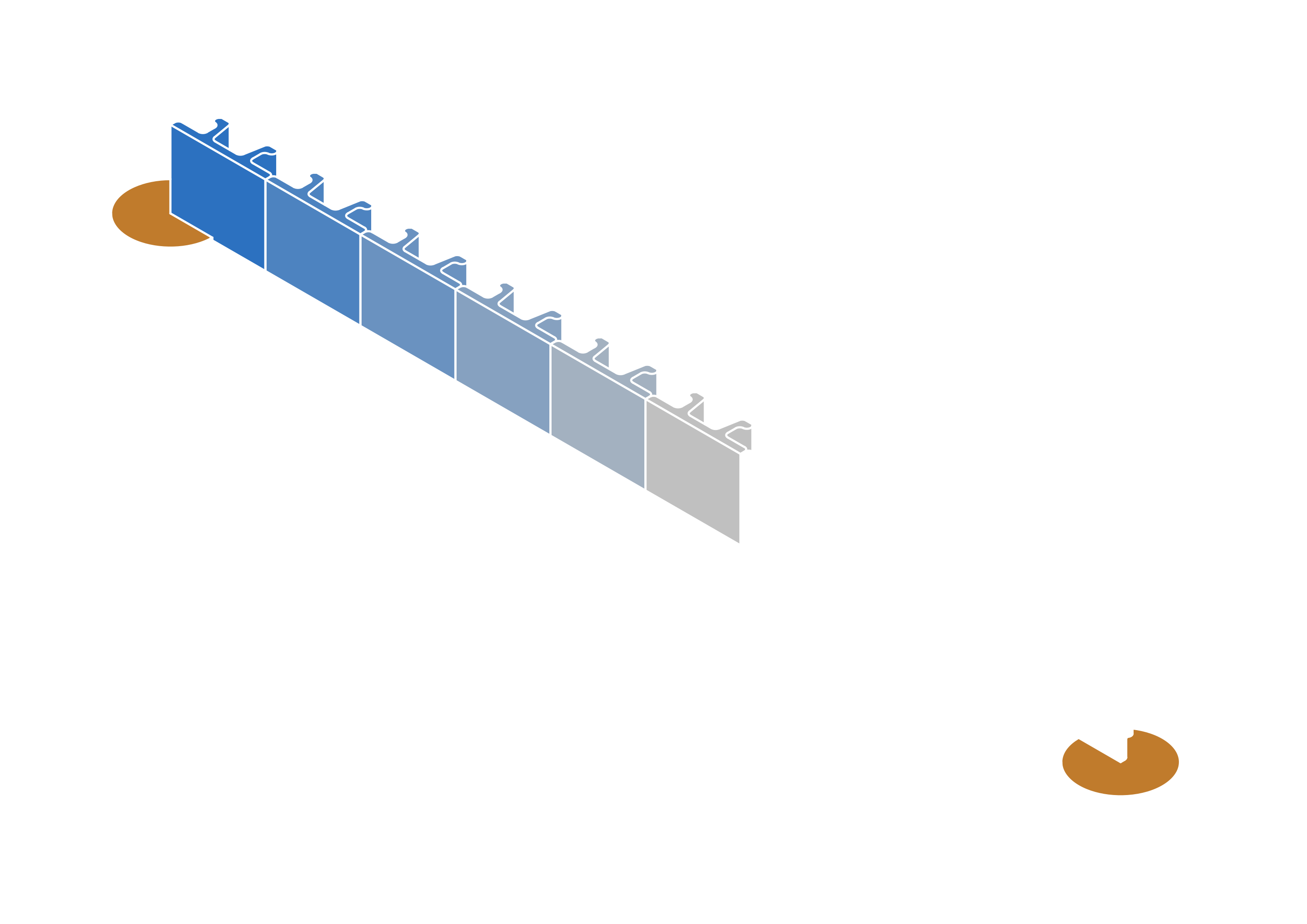

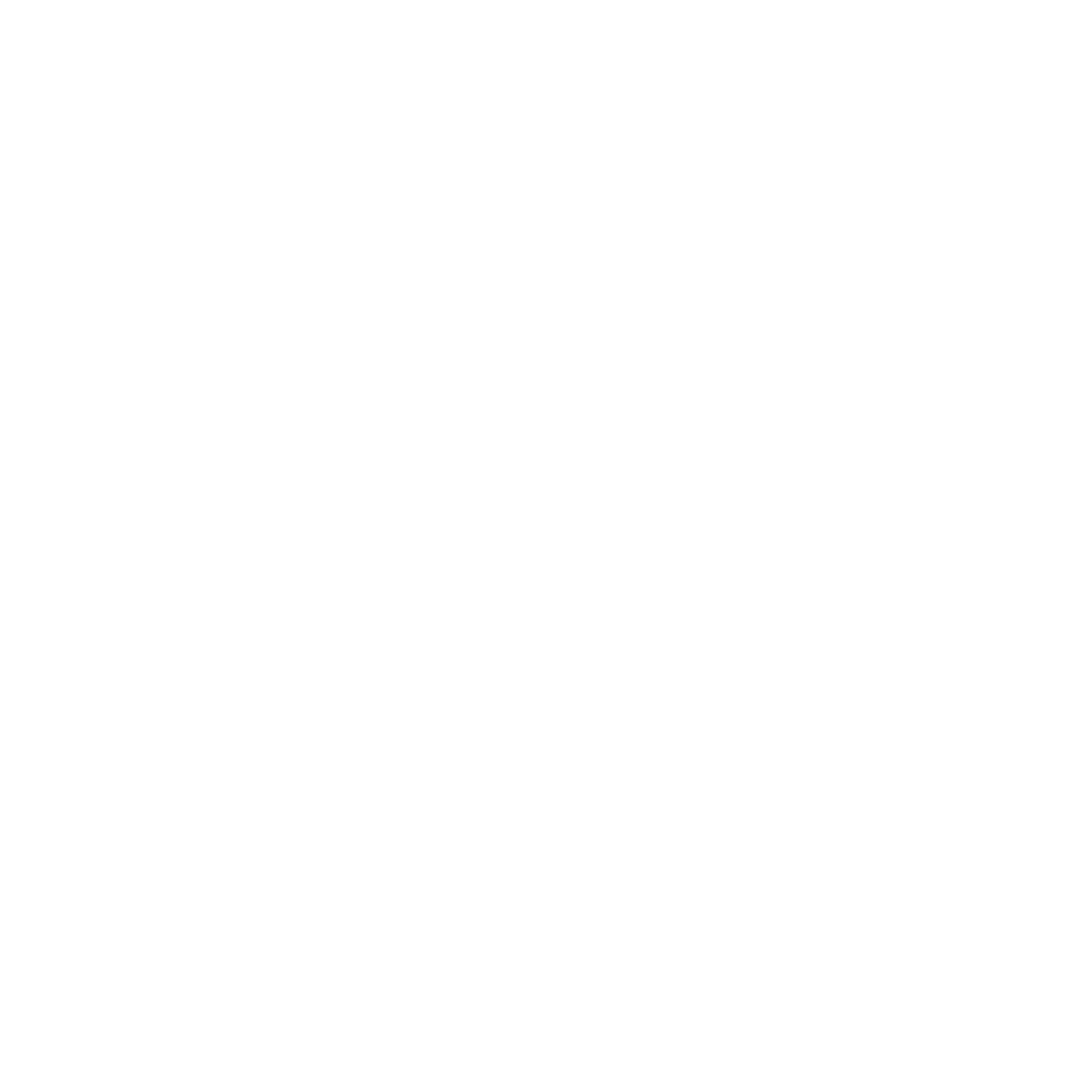

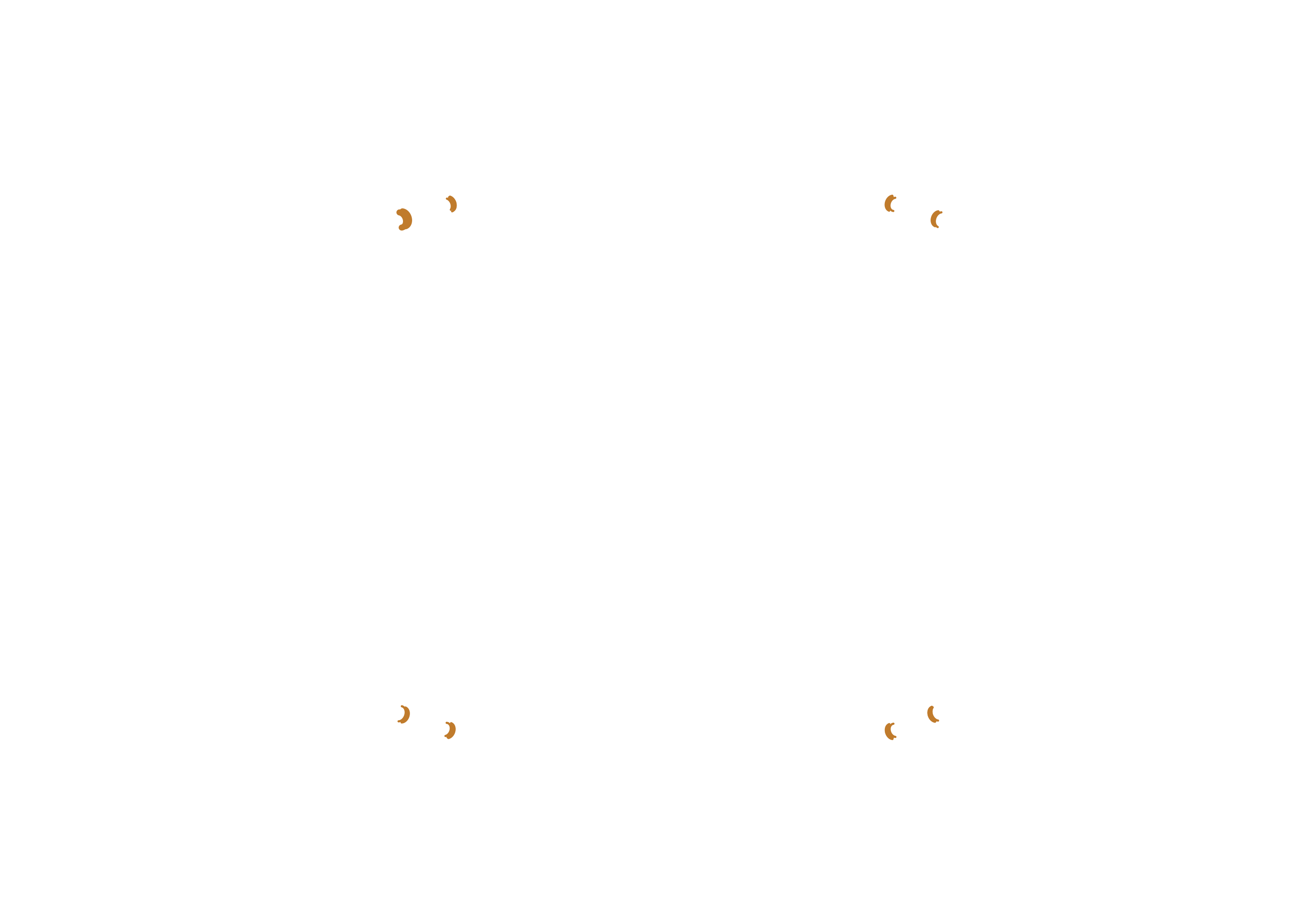

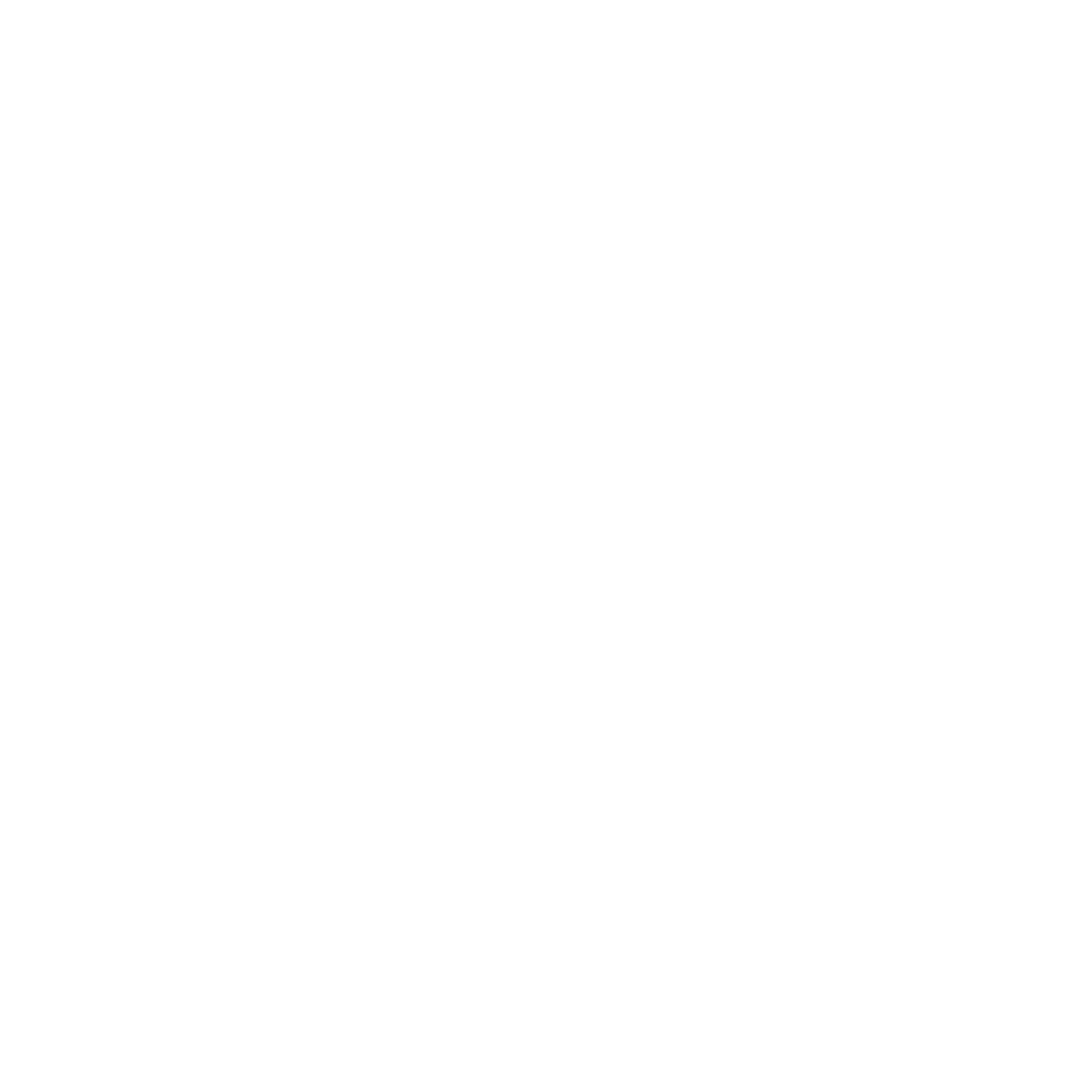

Separate the individual clips and remove excess material.

note

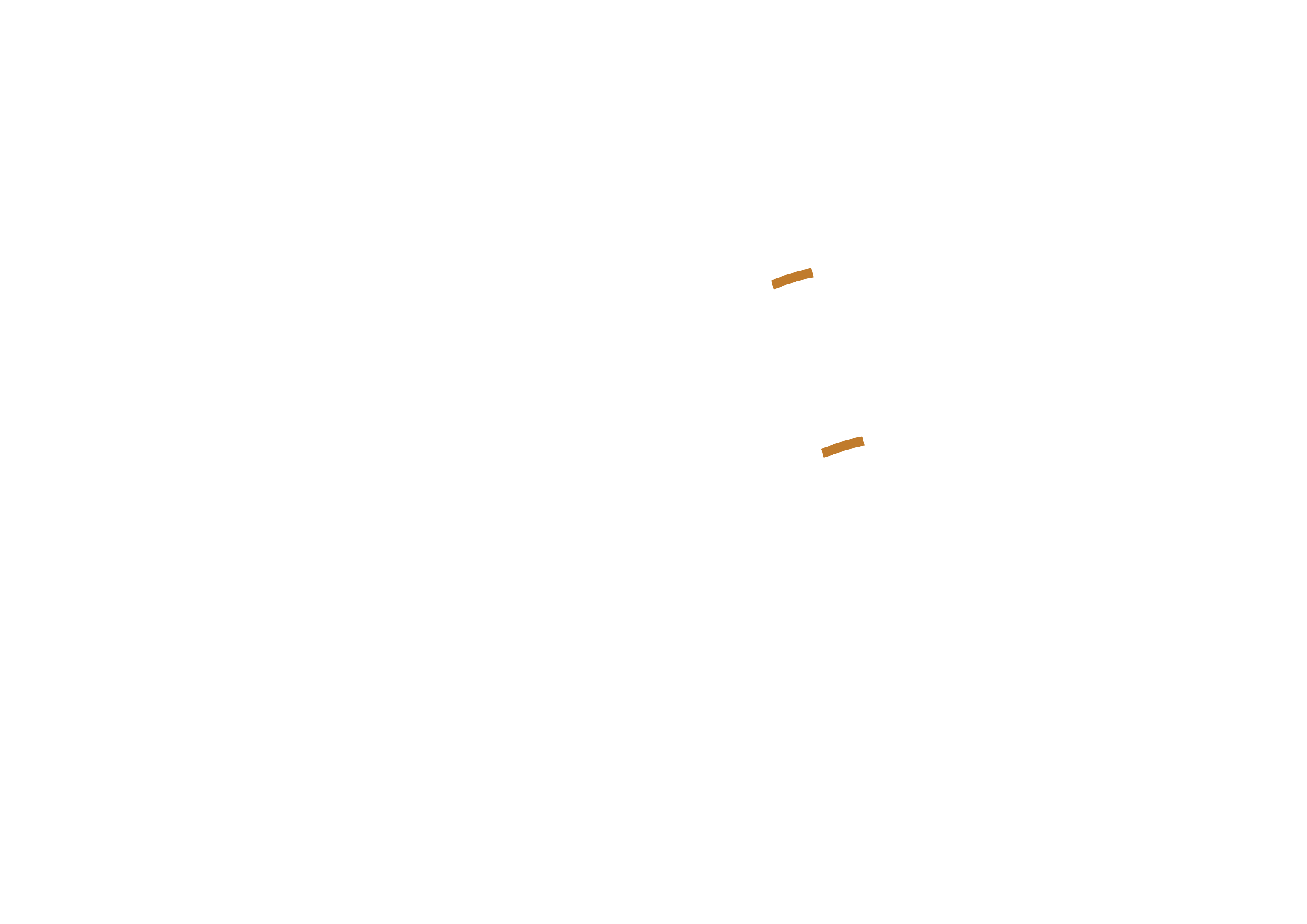

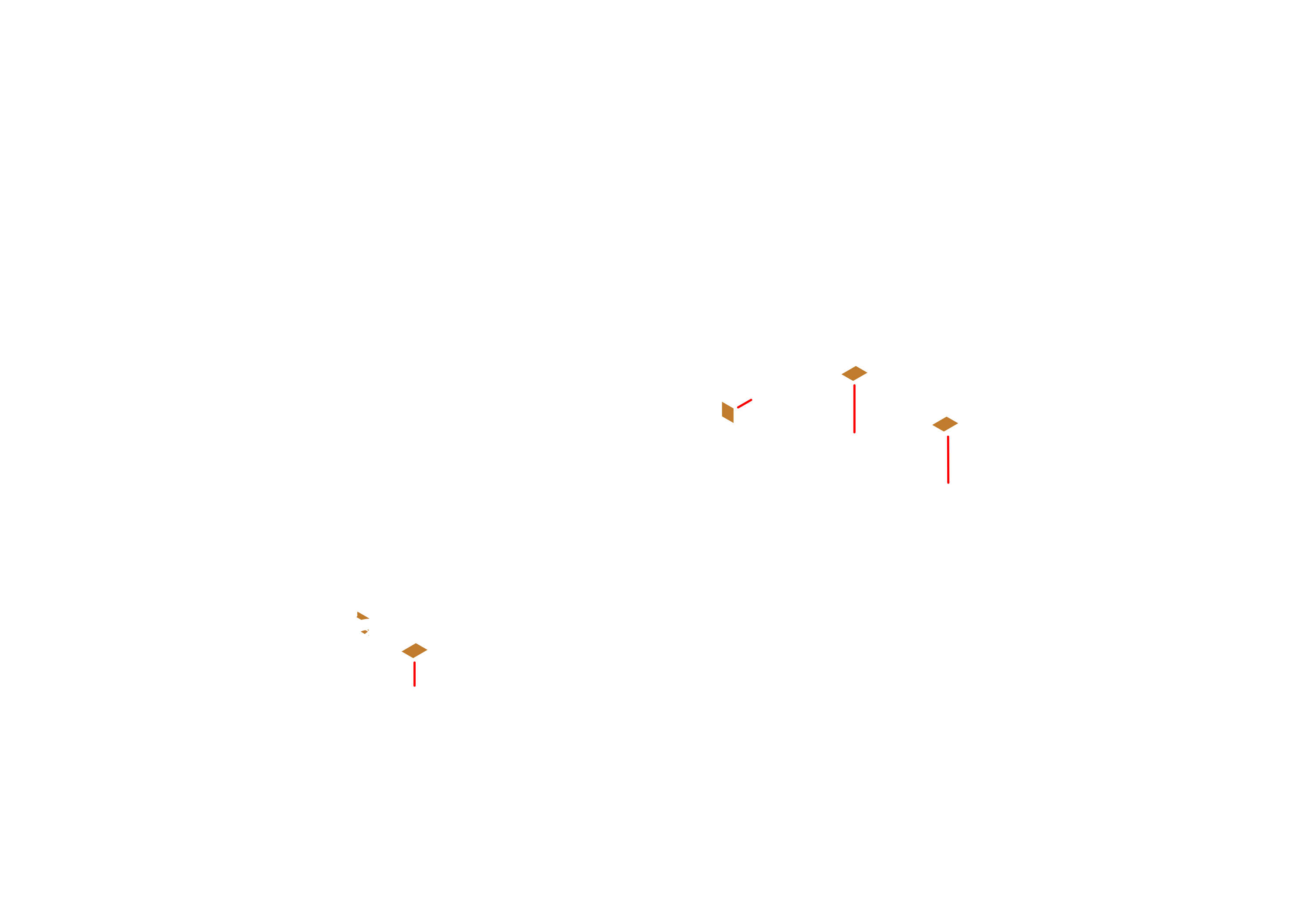

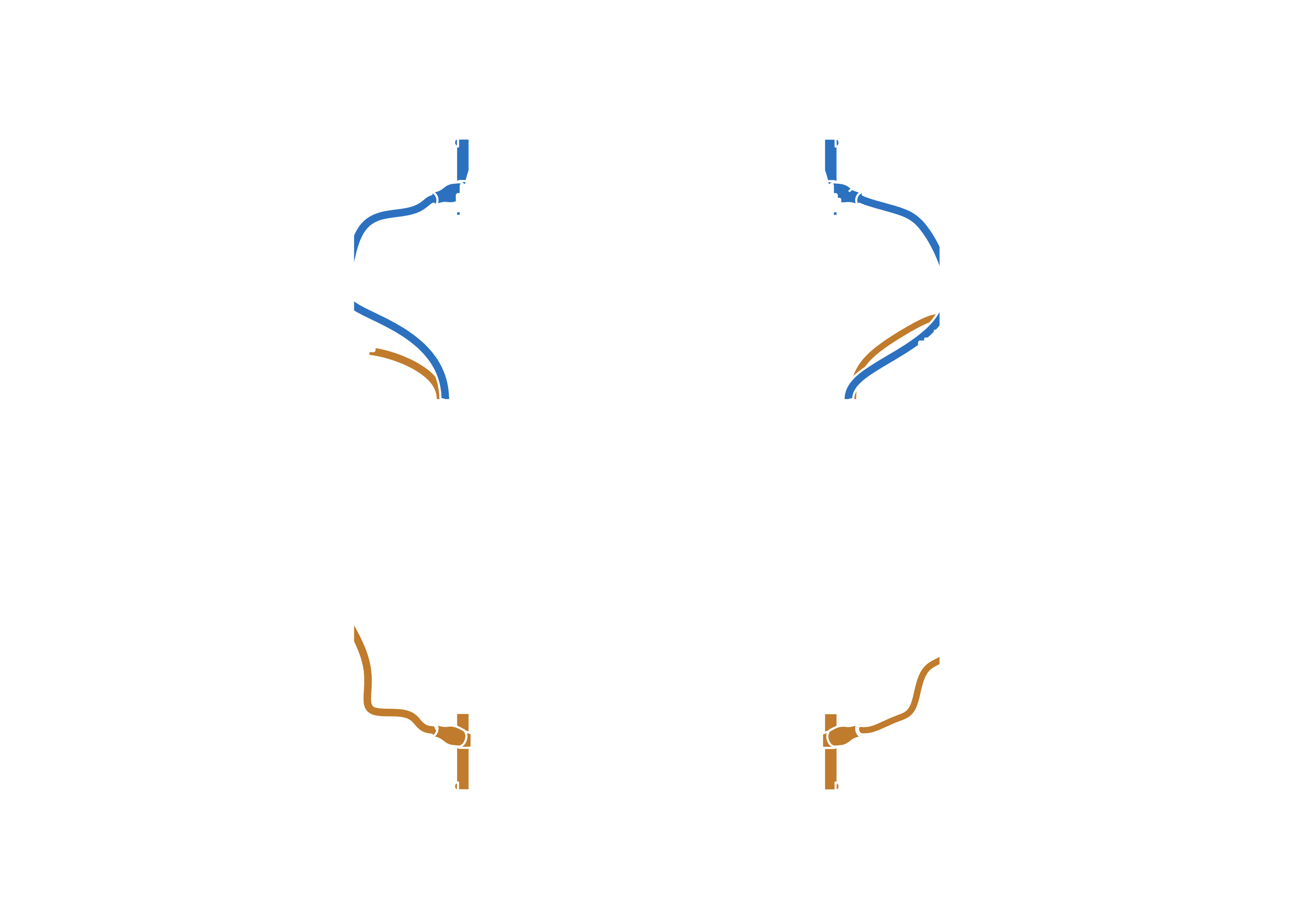

Press the clips into the V-slot beam grooves to secure the cables.

---

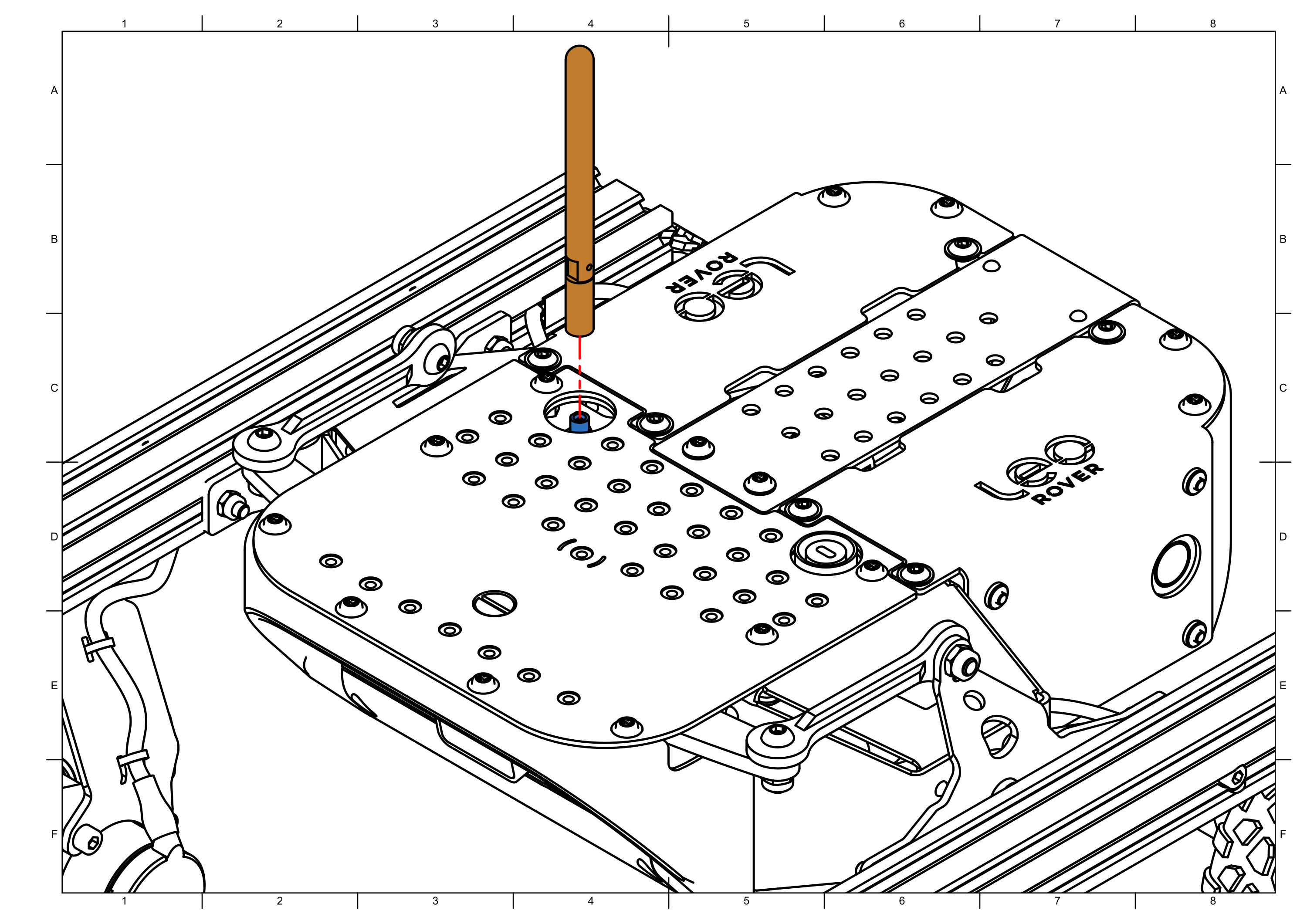

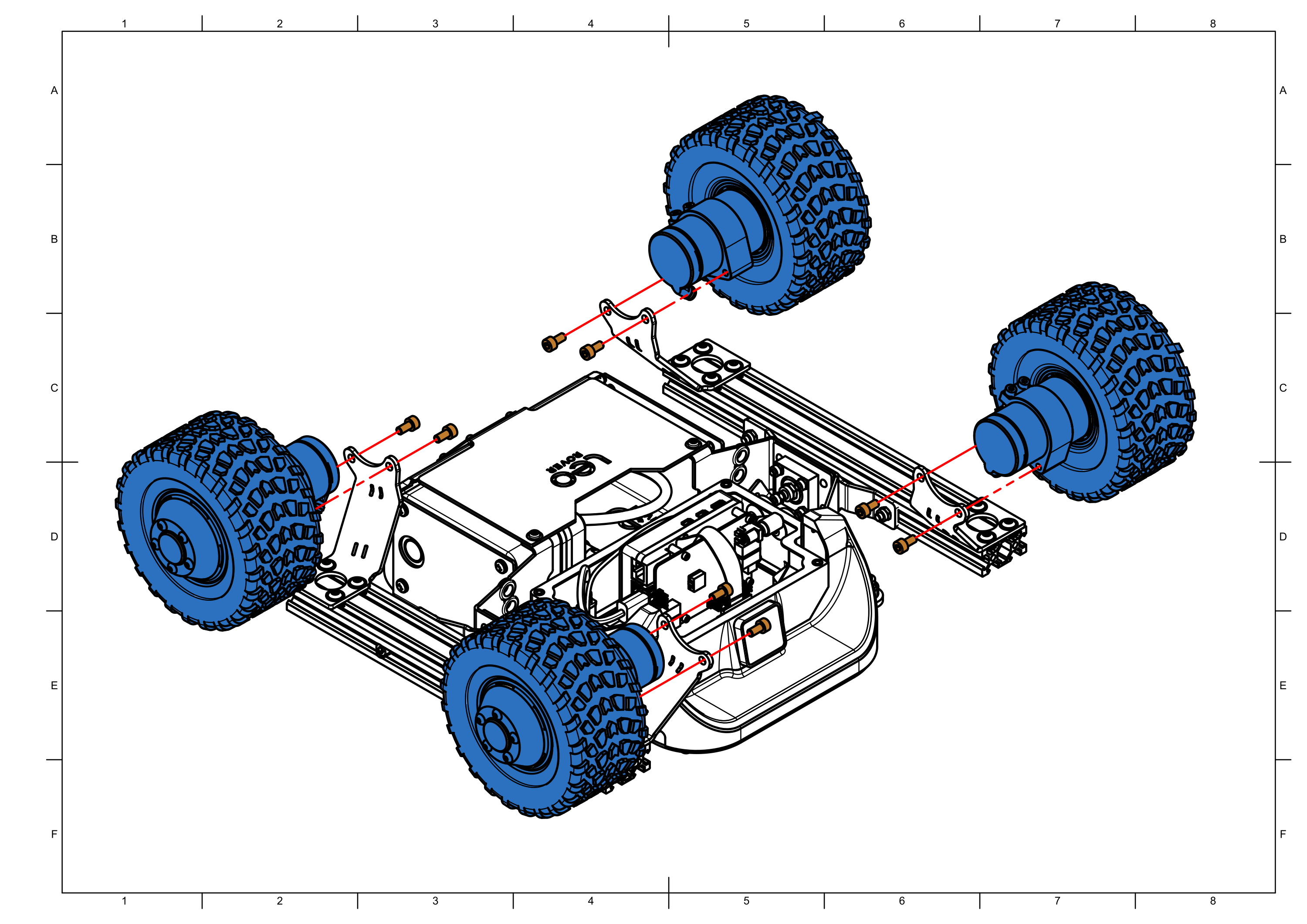

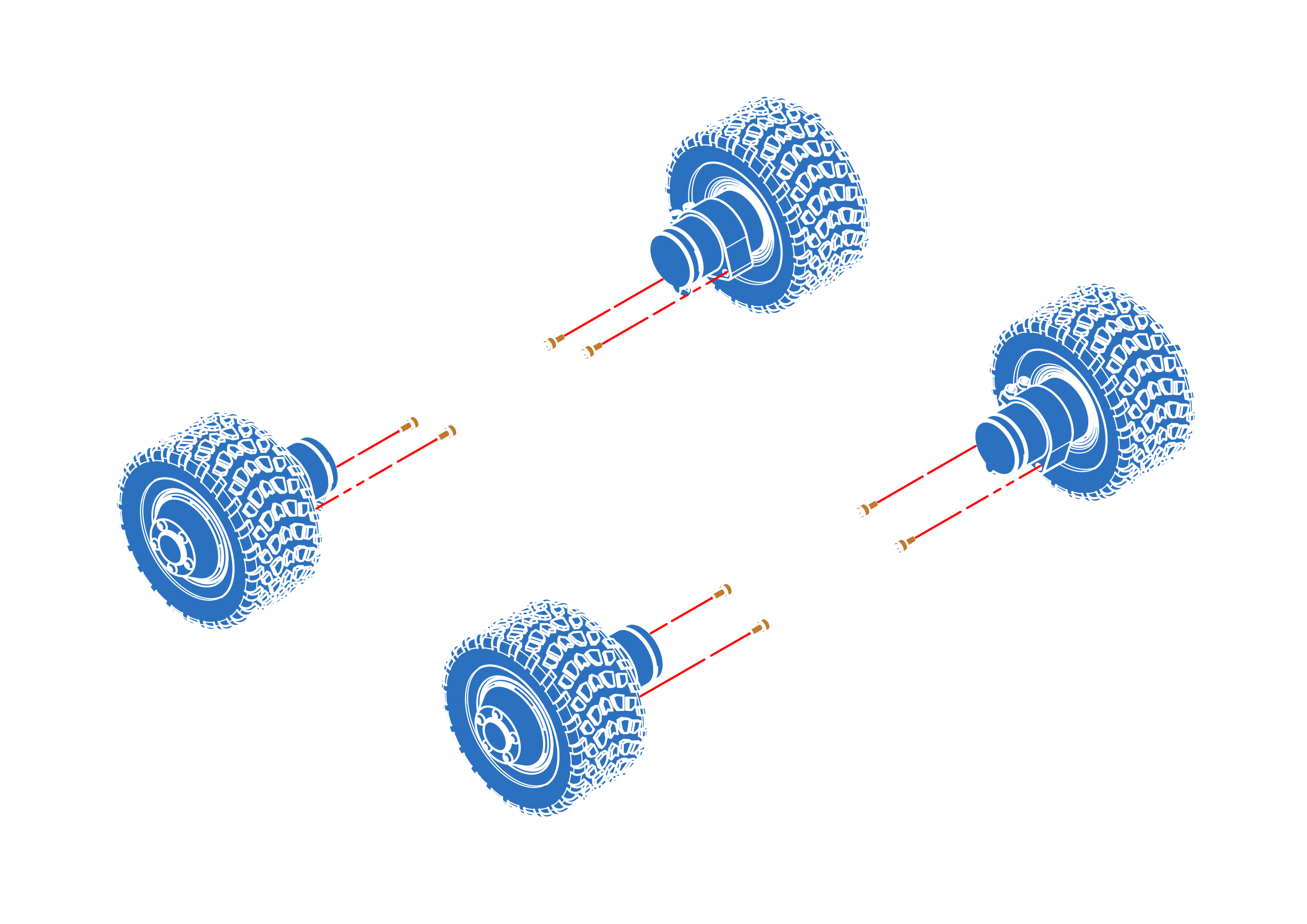

Step 10

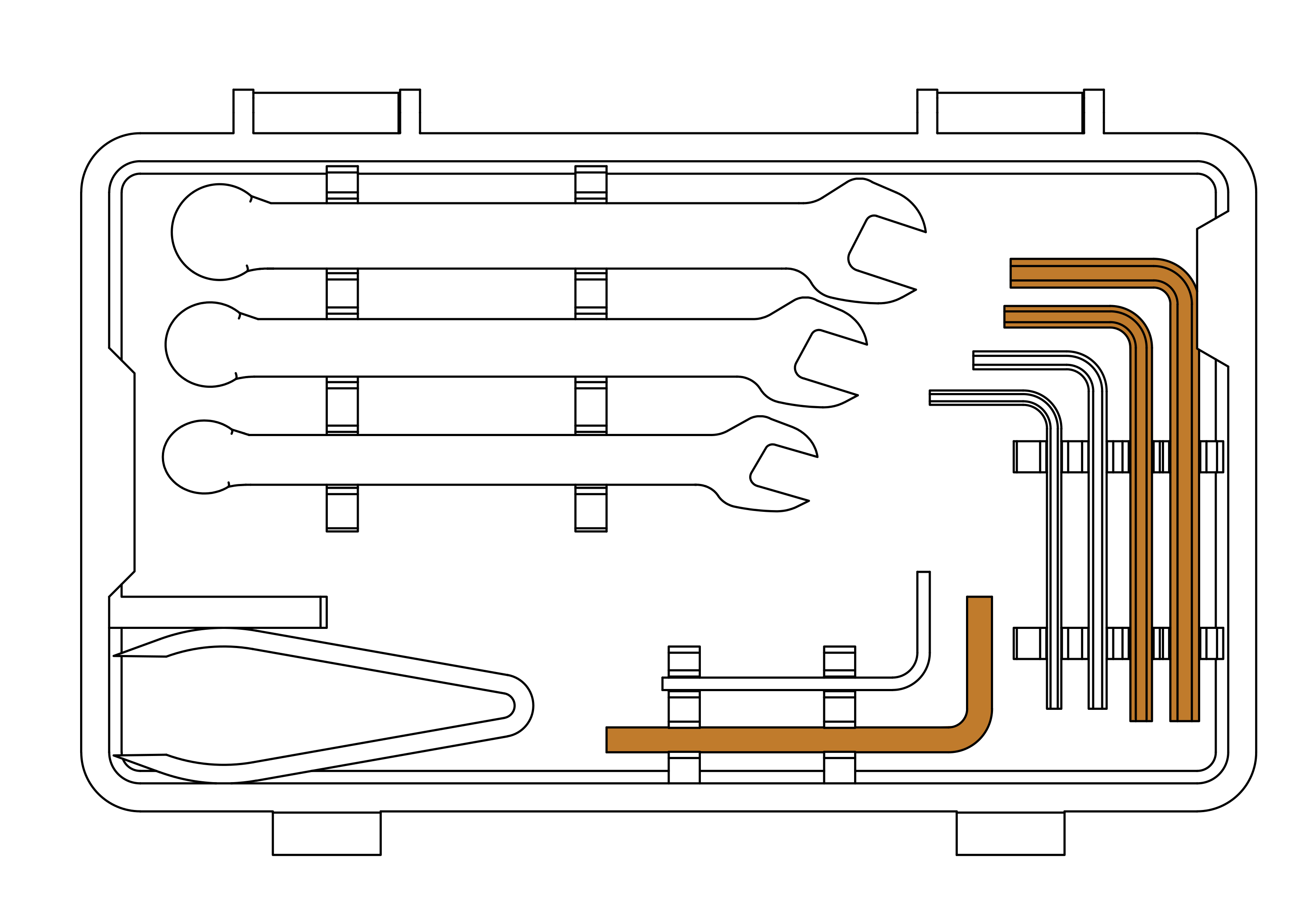

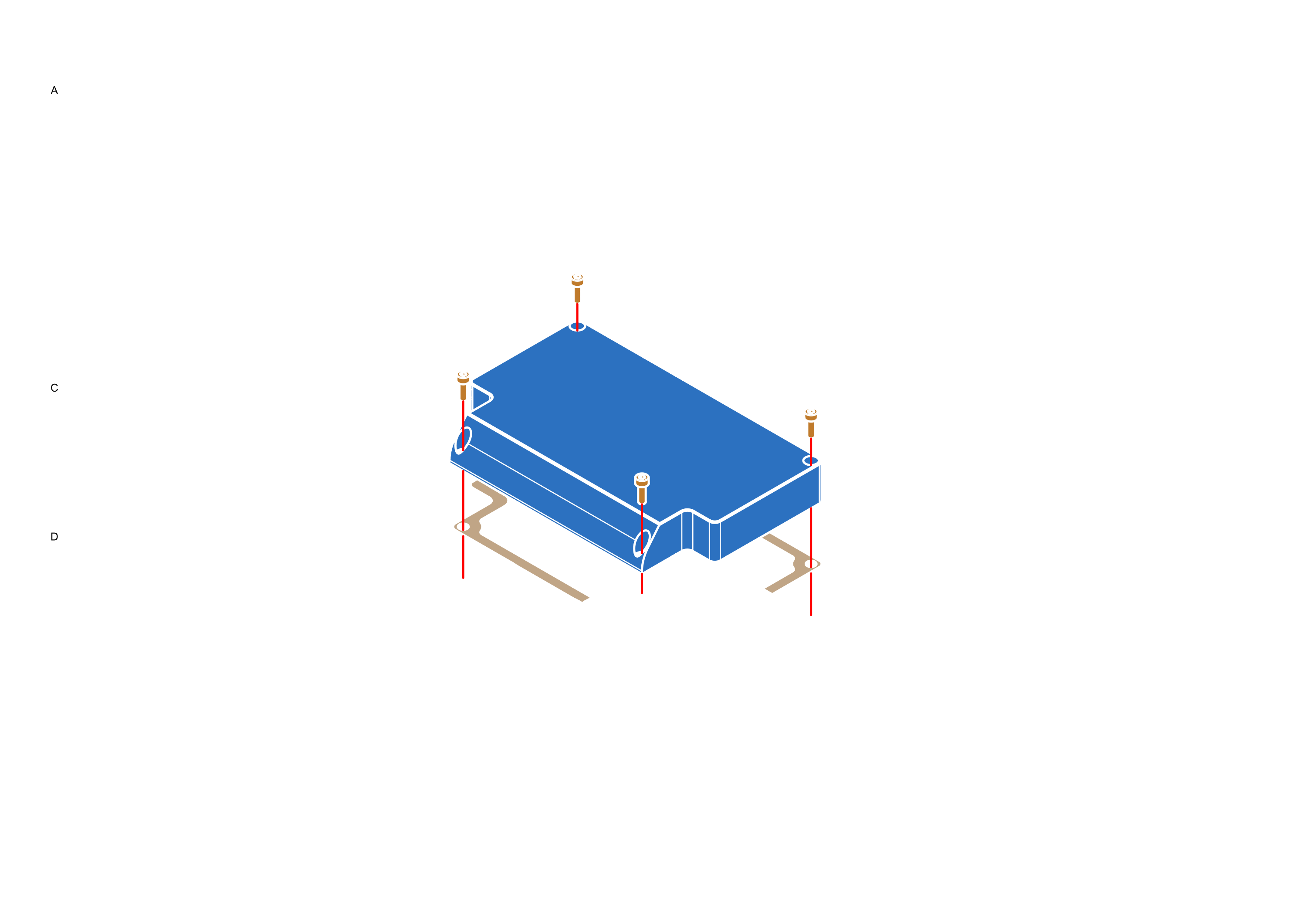

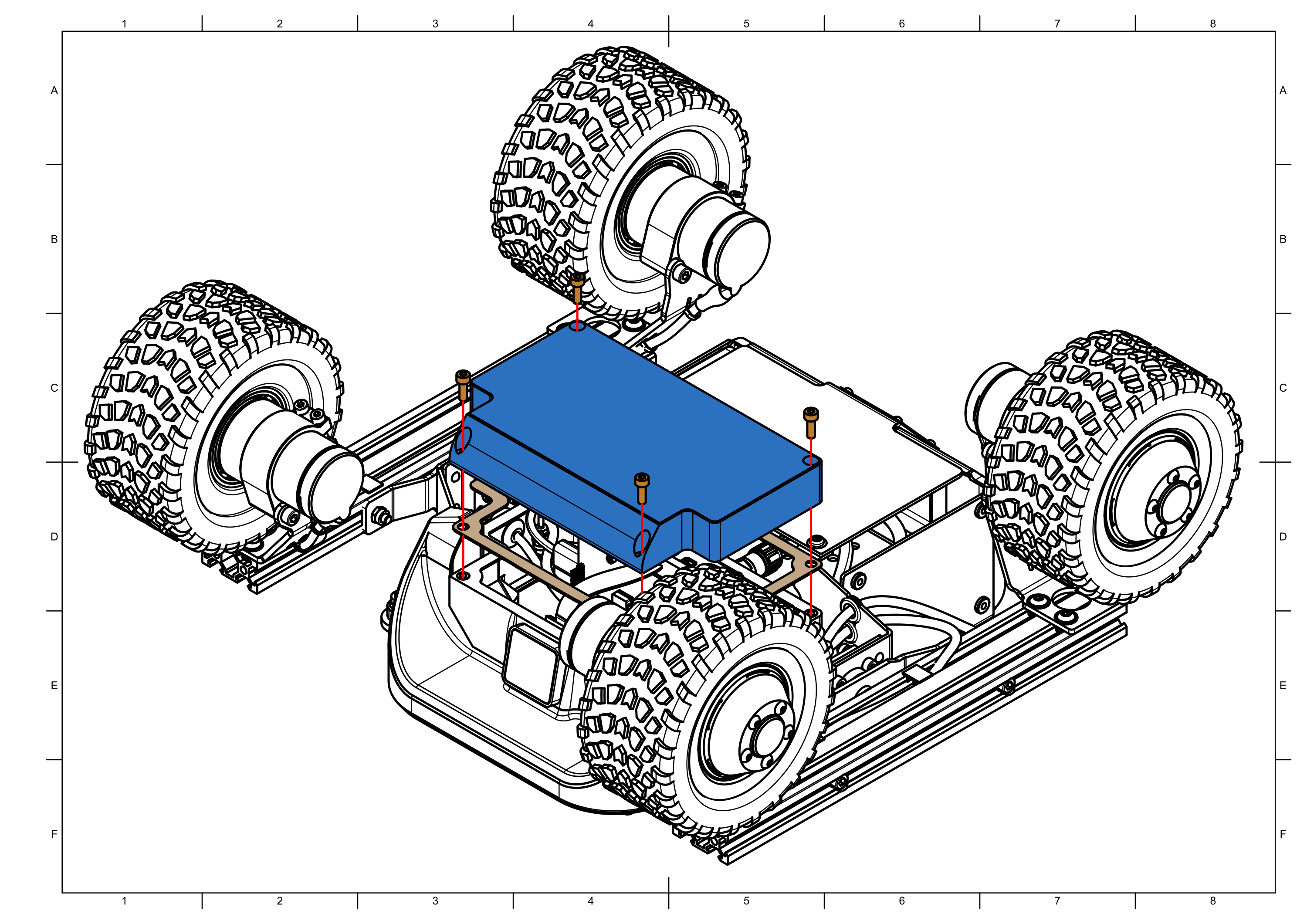

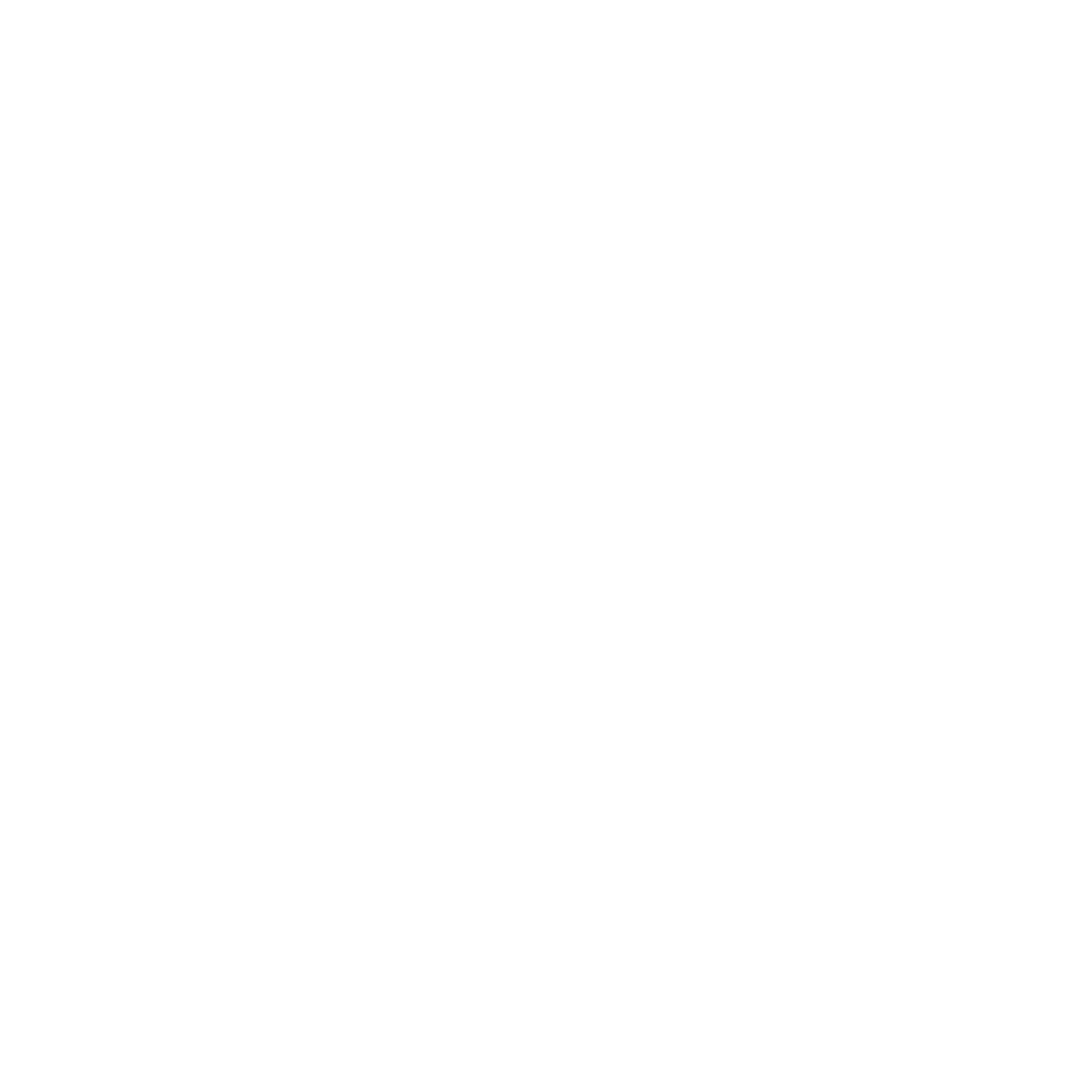

4x M4x16 SHCS

4x M4x16 SHCS

---

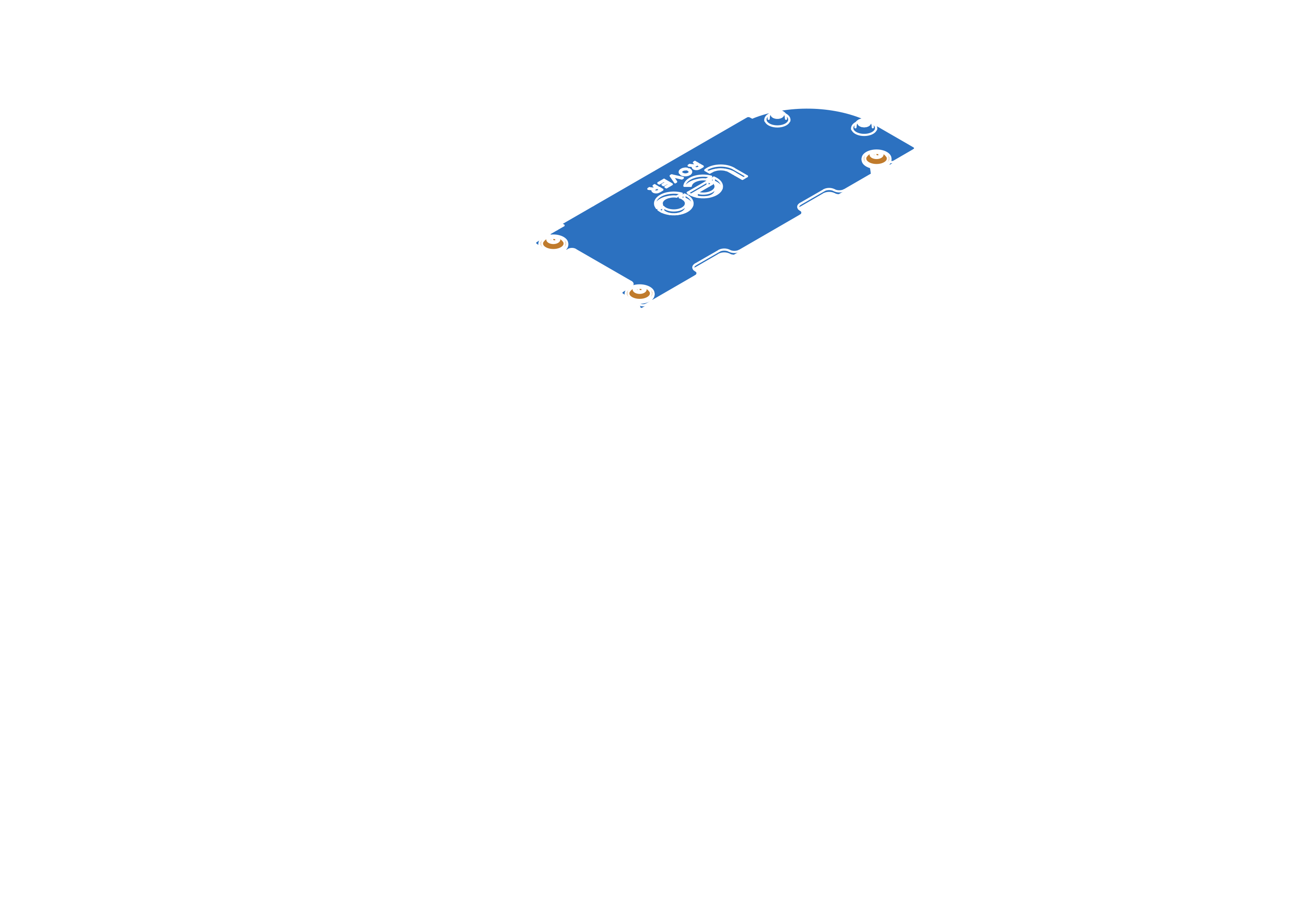

Step 11

---

success

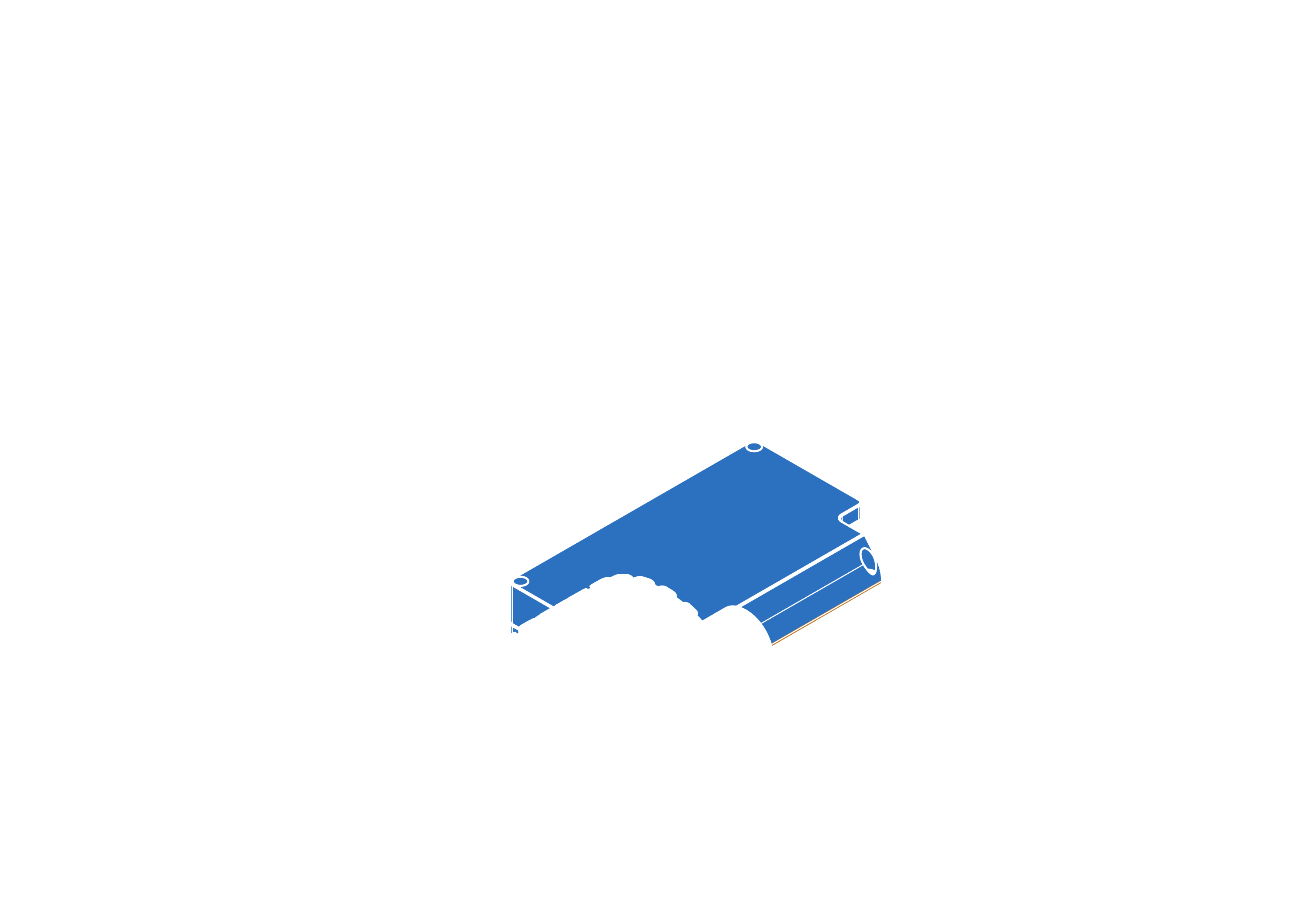

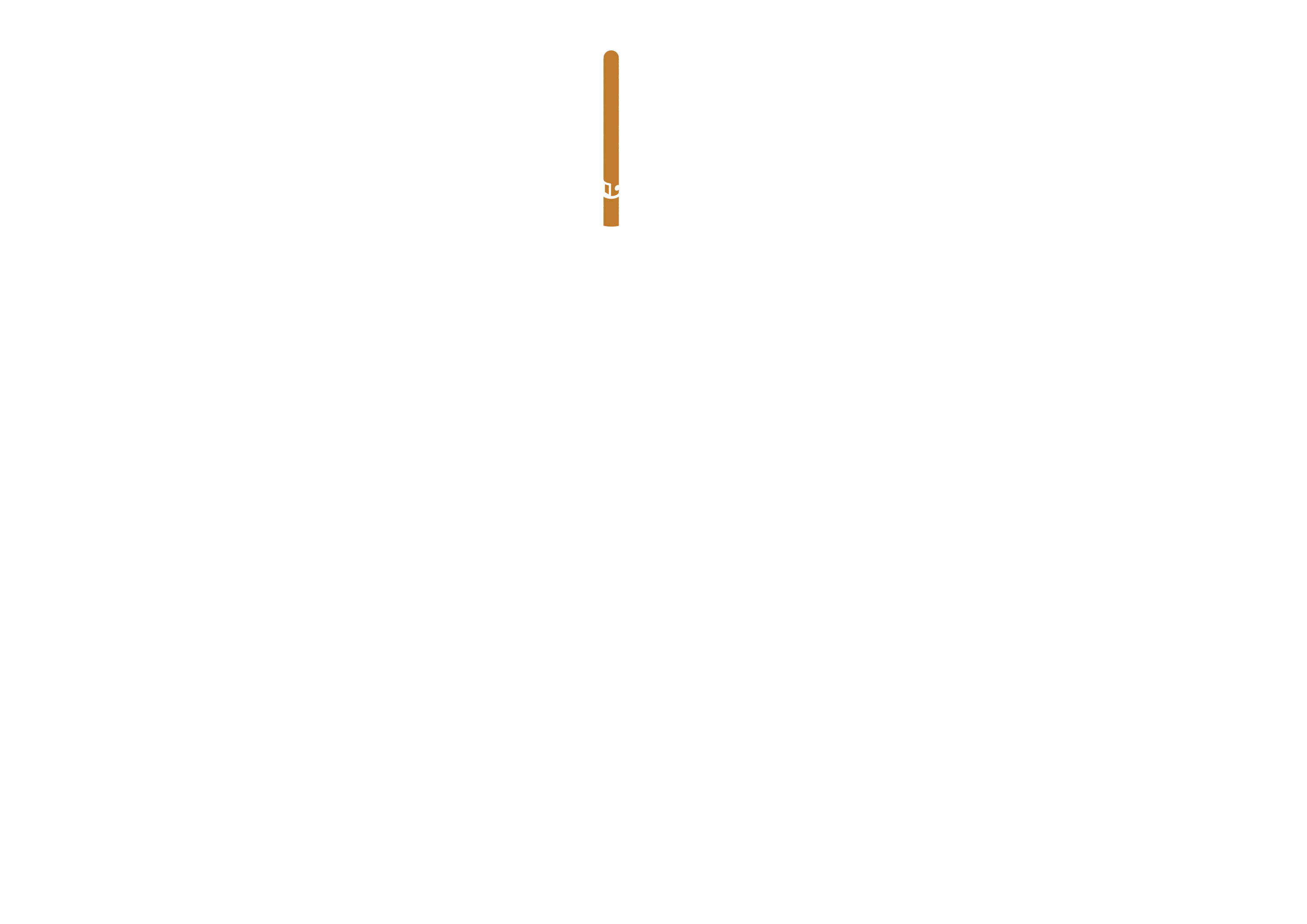

Mechanically that's it. Good job!
